Division 1 Explosion-Proof Vacuums Electric and Pneumatic-HAZLOC

aaa

EXP1 Models Certified for: Class I, Division 1, Division 2, Group D, T3C and Class II, Division 1, Division 2, Groups E, F and G. Electric and Pneumatic.

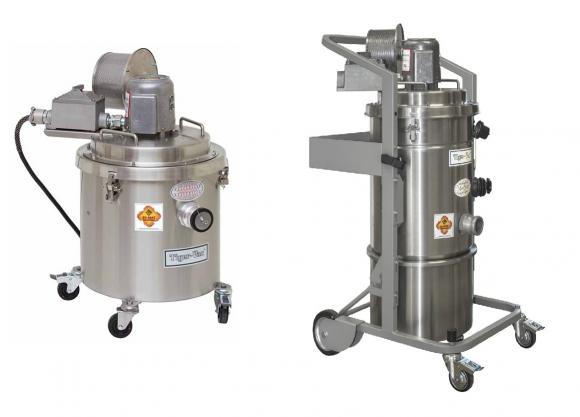

Class 1 Division 1 Explosion-Proof Vacuums

3rd party certified explosion proof vacuums for HAZLOC- 120v, 3-phase, and air-powered

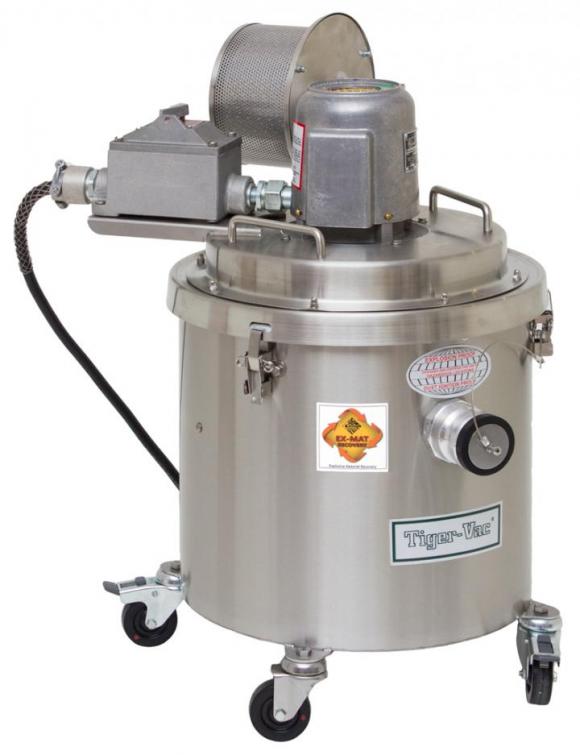

EXP15HEPA
Tiger-Vac® EXP1-5 (4W) RE HEPA

The Tiger-Vac® EXP1-5 (4W) RE HEPA is the shortest Explosion-Proof Vacuum on the market, measuring just 29.5" tall. Highly portable and plugs directly into 120v AC power. Legally certified explosion proof/dust ignition proof, HEPA Filtration.  Static conductive hose and tool kit are included. 3.4 gal capacity, 132 cfm, 1.5" inlet. TEFC motor, Clean room compatible. For dry recovery only.  21”L x 24”W x 29.5”H. Weight is 60 lb

For the safe recovery of combustible/conductive dusts in areas that are:

Class I, Division 1, Division 2, Group D, T3C and Class II, Division 1, Division 2, Groups E, F and G.

Plus (click or tap to expand) + Click here for full specifications

P/N 111355A
Model NameEXP1-5 (4W) RE HEPA
Type (Powerhead)Electric
TEFC MotorYes
Voltage120 V
Hertz60 Hz
PhaseSingle
Wattage1000 W
Power1.3 HP
Amperage9 A
Air Flow132 CFM
Vacuum Pressure69 " H20
Sound Level78/85 dB(A)
Plug TypeNot Included
Suction Inlet1.5 "
Cart Type4 Wheel Dolly (4W)
Filter CleaningNone
Dry Recovery - Tank3.4 Gal
Length21 "
Width24 "
Height29.5 "
Weight (Vacuum Only)60 lb.
Cord Length50 ft.

Explosion Proof Vacuum 5 gallon Class 1

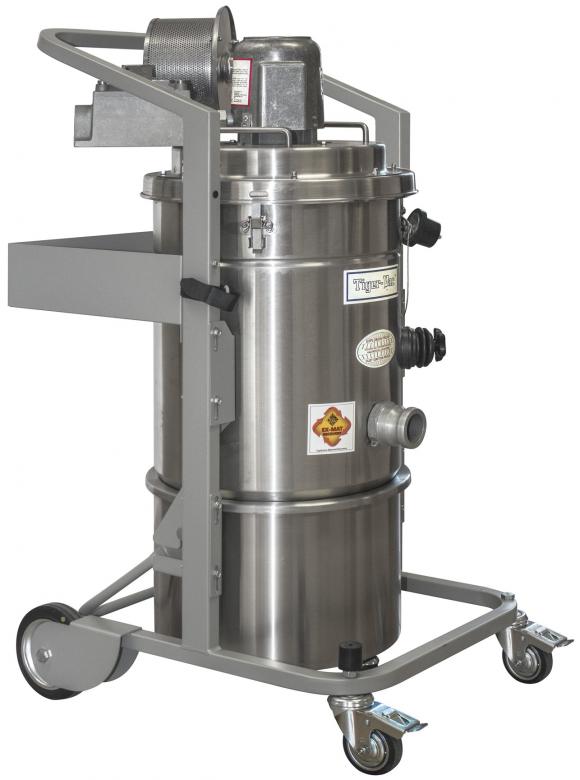

EXP1-20L
Tiger-Vac® EXP1-20L (DT) RE HEPA (MFS)

This is a popular choice for OSHA compliance as it is a highly portable vacuum that is great for housekeeping clean up around work stations.  The Tiger-Vac® EXP1-20L (DT) RE HEPA (MFS) plugs directly into 120V single phase electric, Legally certified explosion proof/dust ignition proof, HEPA Filtration.  Static conductive hose and tool kit are included. 6.6-gal capacity, 132 cfm, 2" inlet. TEFC motor, Clean room compatible.

A conductive polyliner recovery bag is optional. For dry recovery only.  Has a detachable tank (DT) and manual Filter-Shaker (MFS). 26” L x 22”W x 43”H. Weight is 100 lb.

For the safe recovery of combustible/conductive dusts in areas that are:

Class I, Division 1, Division 2, Group D, T3C and Class II, Division 1, Division 2, Groups E, F and G.

Plus (click or tap to expand) + Click here for full specifications

P/N 110364A
Model NameEXP1-20L (DT) RE HEPA (MFS)
Type (Powerhead)Electric
TEFC MotorYes
Voltage120 V
Hertz60 Hz
PhaseSingle
Wattage1000 W
Power1.3 HP
Amperage9 A
Air Flow132 CFM
Vacuum Pressure69 " H20
Sound Level78/85 dB(A)
Plug TypeNot Included
Suction Inlet2 "
Cart TypeDetachable Tank (DT)
Filter CleaningManual Filter Shaker (MFS)
Dry Recovery - Tank6.6 Gal
Length26 "
Width22 "
Height43 "
Weight (Vacuum Only)100 lb.
Cord Length50 ft.

Intrinsically Safe Air Powered Vacuums for Industrial Applications

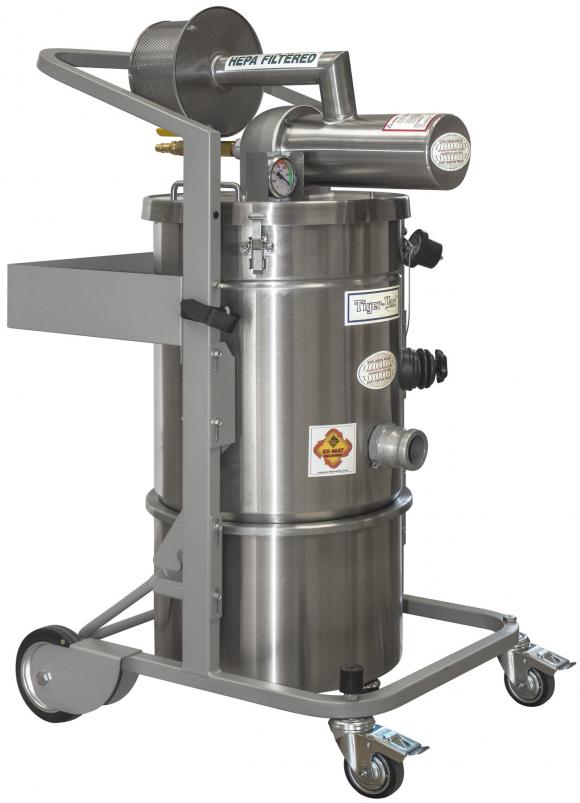

SS-20
Tiger-Vac® SS-20 (DT) RE HEPA MFS - Air Powered

The Tiger-Vac® SS-20 (DT) HEPA MFS is a highly portable compressed air XP vacuum. A 15HP compressor is required for optimal operation, HEPA Filtration.   Static conductive hose and tool kit are included. 6.6-gal capacity, 120 cfm, 2" inlet. Has a detachable tank (DT) and manual Filter-Shaker (MFS). A conductive polyliner recovery bag is optional. For dry recovery only. 26”L x 22”W x 42”H. Weight is 78 lb.

For the safe recovery of combustible/conductive dusts in areas that are:

Division 1, Class I, Groups A, B, C and D Division 1, Class II, Groups E, F, G.

Plus (click or tap to expand) + Click here for full specifications

P/N110400
Model NameSS-20 (DT) RE HEPA MFS
Type (Powerhead)Pneumatic
VenturiSingle
Venturi (diam.)6 mm
Minimum Compressor15 HP
Air Line Size (Diam.)1/2 "
Input Air Volume45 CFM
Input Air Pressure80 PSI
Air Flow120 CFM
Vacuum Pressure180 " H20
Sound Level72 dB(A)
Suction Inlet2 "
Cart TypeDetachable Tank (DT)
Filter CleaningManual Filter Shaker (MFS)
Dry Recovery - Tank6.6 Gal
Length26 "
Width22 "
Height42 "
Weight (Vacuum Only)78 lb.
HEPA/ULPA Filter Surface Size7 ft2
Main Cloth Filter Surface Size3.75 ft2

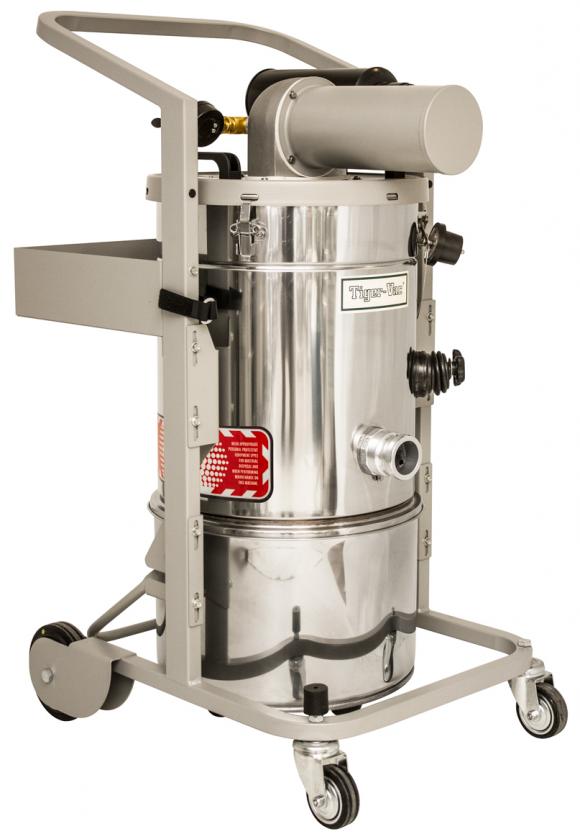

Air-Powered Explosion-Proof

AVSD-25L DT (MFS) RE HEPA (SINGLE VENTURI)
Tiger-Vac® AVSD-25L DT (MFS) RE HEPA (SINGLE VENTURI)

The Tiger-Vac® AVSD-25L (DT) MFS HEPA is a highly portable single venturi compressed air XP vacuum.  A 15HP compressor and ½" airline are required for optimal operation, HEPA Filtration included.  Static conductive hose and tool kit are included. 6.6-gal capacity, 120 cfm, 2" inlet.  Manual Filter Shaker (MFS) system. Equipped with a 4-wheel cart and tool basket. The cart has static dissipative or conductive wheels. 26”L x 25”W x 42”H. Weight is 68 lb.

For the safe recovery of combustible/conductive dusts in areas that are:

Class II, Division 1, Division 2, Groups F, G.

Plus (click or tap to expand) + Click here for full specifications

AVSD-25L (DT) MFS HEPA111388
Model NameAVSD-25L DT (MFS) HEPA
Type (Powerhead)Pneumatic
VenturiSingle
Venturi (diam.)6 mm
Minimum Compressor15 HP
Air Line Size (Diam.)1/2 "
Input Air Volume45 CFM
Input Air Pressure80 PSI
Air Flow120 CFM
Vacuum Pressure180 " H20
Sound Level73 dB(A)
Suction Inlet2 "
Cart TypeDetachable Tank (DT)
Filter CleaningManual Filter Shaker (MFS)
Dry Recovery - Tank6.6 Gal
Length25 "
Width25 "
Height42 "
Weight (Vacuum Only)68 lb.
HEPA/ULPA Filter Surface Size5.4 ft2
Main Cloth Filter Surface Size3.75 ft2

Wet & Dry Recovery XP Air-Powered

AVSD-40L DT

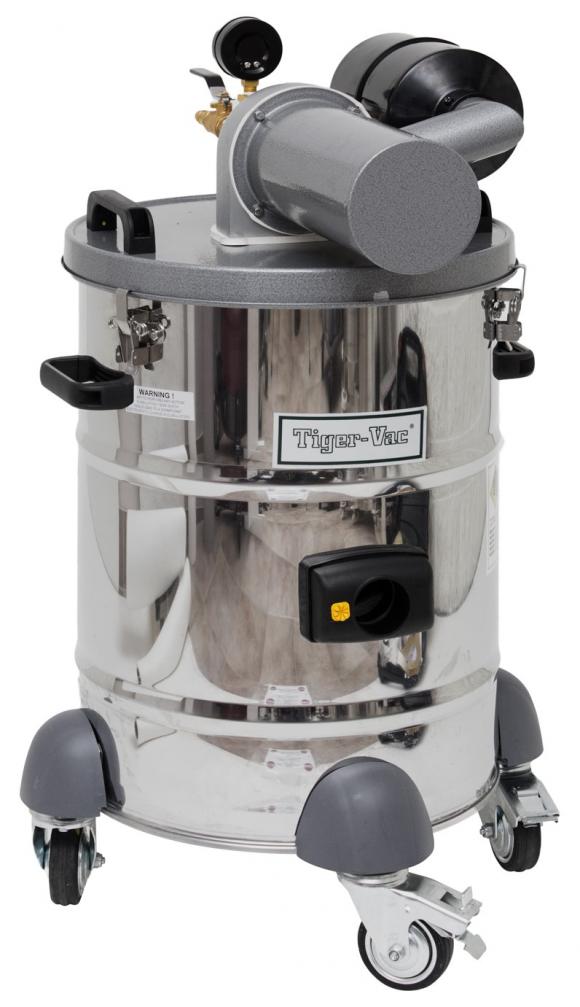

Tiger-Vac® AVSD-40L DT

The Tiger-Vac® AVSD-40L (DT) MFS HEPA is a highly portable single venturi compressed air XP vacuum.  A 15HP compressor and ½" airline are required for optimal operation, HEPA Filtration included.  Static conductive hose and tool kit are included. 10.5-gal capacity, 120 cfm, 2" inlet. ATEX/AVSD wet/dry conductive hose & vac tools are Included. The cart is a 4 Wheel Dolly (4W) type with conductive casters.  A conductive polyliner recovery Bag is optional. Wet & dry recovery. 25”L x 20”W x 42”H. Weight is 42 lb.

For vacuuming of designated substances/hazardous dusts, such as asbestos, lead, silica, mold, in areas that are:

Class II, Division 1, Division 2, Groups F, G.

Plus (click or tap to expand) + Click here for full specifications

P/N111844
Model NameAVSD-40L (4W) HEPA
Type (Powerhead)Pneumatic
VenturiSingle
Venturi (diam.)6 mm
Minimum Compressor15 HP
Air Line Size (Diam.)1/2 "
Input Air Volume45 CFM
Input Air Pressure80 PSI
Air Flow120 CFM
Vacuum Pressure180 " H20
Suction Inlet60 mm
Cart Type4 Wheel Dolly (4W)
Filter CleaningNone
Dry Recovery - Tank10 gal.
Length25 "
Width20 "
Height32 "
Weight (Vacuum Only)42 lb.
HEPA/ULPA Filter Surface Size5.4 ft2
Main Cloth Filter Surface Size3.75 ft2

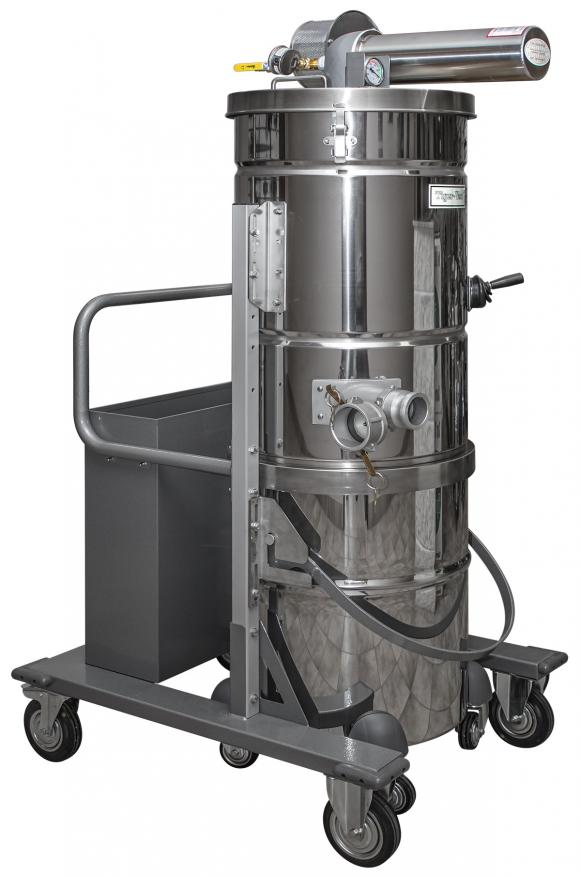

Twin Venturi Intrinsically-Safe XP Vacuum

AVSD-100L pic
Tiger-Vac® AVSD-100L DT (MFS) RE HEPA (SINGLE/TWIN VENTURI)

 The Tiger-Vac® AVSD-100L DT (MFS) RE HEPA (SINGLE/TWIN VENTURI) is a powerful air-powered vacuuming solution in HAZLOC areas where 3 phase electricity is not available.

Wet & dry recovery, stainless SAE 430 body and tank. Fully static-dissipating design.

Includes a complete static dissipative tool kit, Mounted on a 4-wheel cart for easy maneuverability. Cart has static dissipative wheels, HEPA filtered.

Requires a 15 HP compressor for single venturi and a 30HP for dual venturi. Includes detachable tank (DT) and manual filter shaker (MFS).

2.5” suction inlet. 195 cfm.

For use in areas that are:

Class II, Division 1, Division 2, Groups F, G

Plus (click or tap to expand) + Click here for full specifications

P/N112044112045
Model NameAVSD-100L DT (MFS) RE HEPA (SINGLE VENTURI)AVSD-100L DT (MFS) RE HEPA (TWIN VENTURI)
Type (Powerhead)PneumaticPneumatic
VenturiSingleTwin
Venturi (diam.)6 mm6 mm
Minimum Compressor15 HP30 HP
Air Line Size (Diam.)1/2 "3/4 "
Input Air Volume45 CFM70 CFM
Input Air Pressure80 PSI100 PSI
Air Flow120 CFM195 CFM
Vacuum Pressure180 " H20230 " H20
Suction Inlet2.5 "2.5 "
Cart TypeDetachable Tank (DT)Detachable Tank (DT)
Filter CleaningManual Filter Shaker (MFS)Manual Filter Shaker (MFS)
Dry Recovery - Tank26.3 Gal26.3 Gal

3-phase Explosion-Proof Vacuums

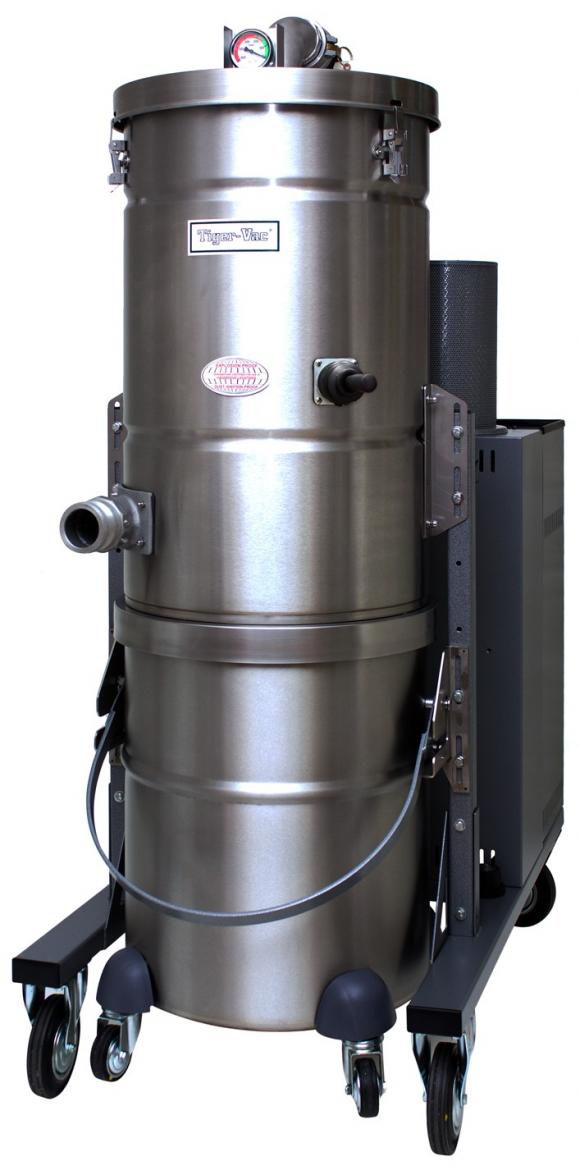

CD-55L
Tiger-Vac® CD-55L (DT) EX (MFS)

The Tiger-Vac® CD-55L (DT) EX (MFS) three phase electrically operated models are equipped with certified induction motors with regenerative blowers rated for continuous duty. Ideal for large volume recovery and for process integration.

Fully portable and completely static-dissipating design, the CD-55L has a removeable recovery tank (DT) and a manual filter shaker (MFS) that allows you to clean the filter without having to dismantle anything.

Click HERE for specifications.

For use in areas that are:

Div 1 - Groups D and in Class II -Div 1 - Groups F & G Hazardous Locations as defined in the National Electrical Code (NFPA 70). A certified Class II  - Div 1 Group E version is also available.

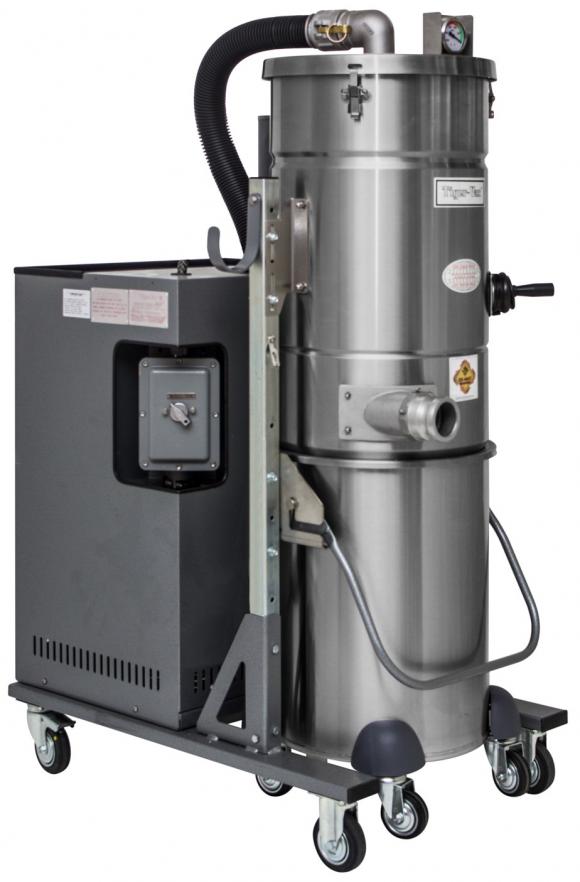

CD-100L (DT) EX (MFS) - 3 Phase Electric

Guest-776
Tiger-Vac® CD-100L

The Tiger-Vac® CD-100L (DT) EX (MFS) three phase electrically operated models are equipped with certified induction motors with regenerative blowers rated for continuous duty. Ideal for large volume recovery and for process integration.

Fully portable and completely static-dissipating design, the CD-100L has a removeable recovery tank (DT) and a manual filter shaker (MFS) that allows you to clean the filter without having to dismantle anything.

Designed for all day continuous use, the CD-100L is a workhorse vacuum that has a Continuous duty single phase, or 3-phase (TEFC) explosion proof/dust ignition proof motor.

Click HERE for specifications.

For use in areas that are:

Div 1 - Groups D and in Class II -Div 1 - Groups F & G Hazardous Locations as defined in the National Electrical Code (NFPA 70). A certified Class II – Div 1 - Group E version is also available.

The vacuums on this page are just a cross-section of what we have available. If you don’t see what you are looking for here, just drop us a line at: sales@controlledairdesign.com or call (800) 635-0298

FAQ Section

Plus (click or tap to expand) + What is a Dust Ignition Protected Vacuum Cleaner?

A dust ignition protected vacuum cleaner is a vacuum cleaner that is enclosed in a manner that excludes dusts and does not permit arcs, sparks or heat otherwise generated or liberated inside of the enclosure to cause ignition of exterior accumulations or atmospheric suspensions of a specified dust on, or in the vicinity of, the vacuum cleaner. To be considered as being dust ignition protected, a vacuum cleaner must be certified by a Nationally Recognized Testing Lab (NRTL).

Plus (click or tap to expand) + What kind of vacuum do I need for explosive paint-booth powders?

Controlled Air Design has a full line of industrial vacuum cleaners for paint booth cleaning maintenance and powder paint recovery. We specialize in explosion-proof division 1 and 2, NFPA vacuum cleaners with HEPA filtration in pneumatic and electric models.

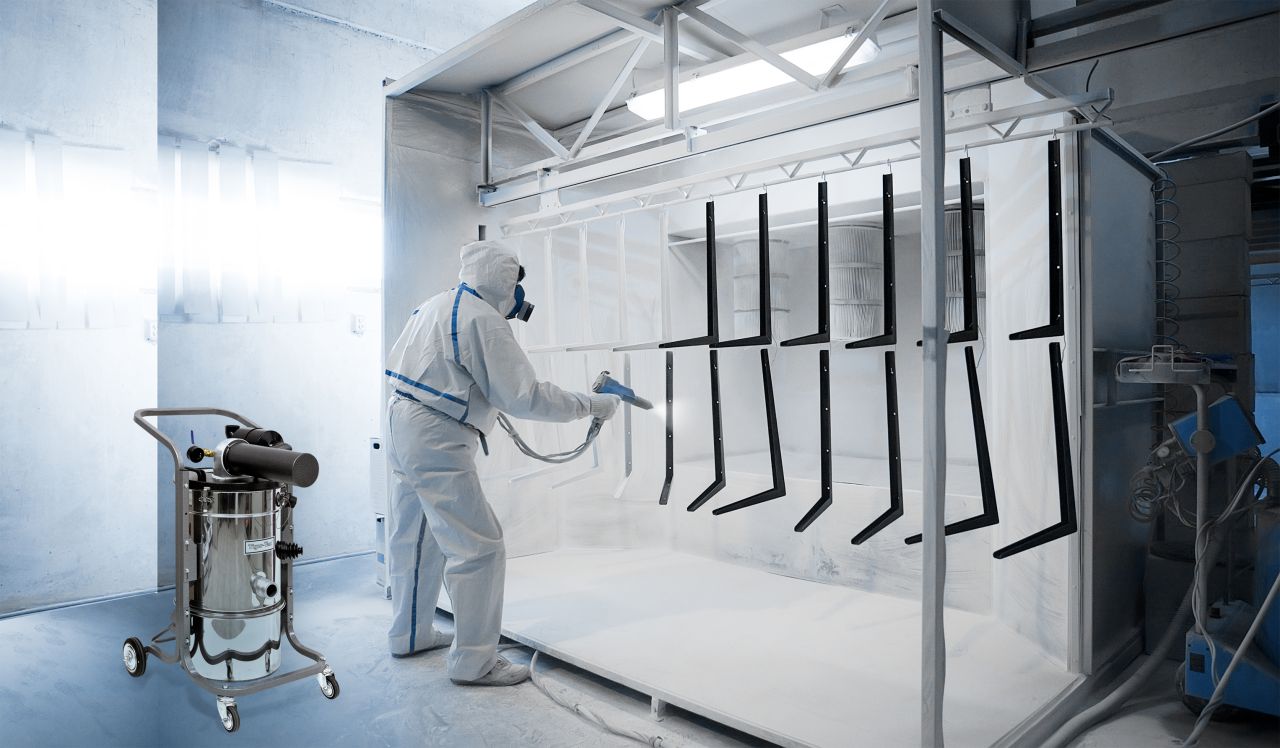

Paint Booth XP Vacuum

Paint Booth XP Vacuum

Plus (click or tap to expand) + What is an Explosion Proof Vacuum Cleaner?

An explosion proof vacuum cleaner is a vacuum cleaner that is capable of preventing the ignition of a specified gas or vapor and that operates at such an external temperature that a surrounding flammable atmosphere will not be ignited. To be considered as being explosion proof, a vacuum cleaner must be certified by a Nationally Recognized Testing Lab (NRTL).

Plus (click or tap to expand) + What is NRTL?

OSHA created the Nationally Recognized Testing Lab (NRTL) program to ensure that certain types of equipment be tested and certified for their safe use in the workplace. A Nationally Recognized Testing Laboratory (NRTL) is a private-sector organization that OSHA has recognized as meeting the legal requirements in 29 CFR 1910.7 to perform testing and certification of products using consensus based test standards. An organization must have the necessary capability both as a product safety testing laboratory and as a product certification body to receive OSHA recognition as an NRTL. To find out more about the OSHA NRTL program, please follow this link to the OSHA website: https://www.osha.gov/dts/otpca/nrtl/nrtllist.html

Plus (click or tap to expand) + Can you explain what Combustible Dust is?

Combustible Dust. Dust particles that are 500 microns or smaller (material passing a U.S. No. 35 Standard Sieve as defined in ASTM E 11-09, Standard Specification for Wire Cloth and Sieves for Testing Purposes) and present a fire or explosion hazard when dispersed and ignited in air.
