Amb1

Solutions for welding and machine shops have that clouds of haze and smoke

Clean Air Solutions for Fumes

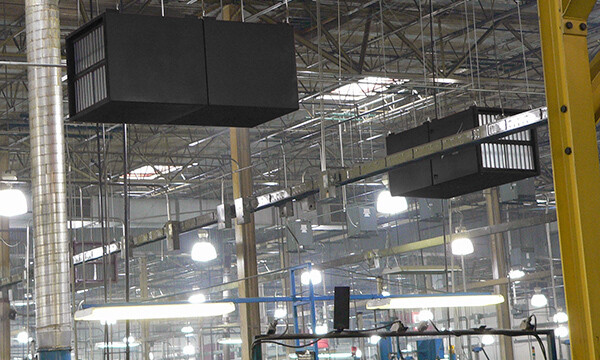

Large Industrial Ceiling Units

Large industrial units up to 4000 CFM. We calculate how many CFM is needed for the requisite Air Changes per Hour (ACH) for your application.

Multiple Filtration Stages

The units feature four inch pleated, industrial pre-filters and Merv 11 or optional Merv 15, multi-pocket bag filters. Our disposable filters are easy to service and provide for simple, low-cost maintenance.

Applcations

  • Welding smoke/fumes
  • Grinding dust
  • Environmental particulate
  • Oil mist
  • Printing powder
  • Other smoke/dust contaminants

Ambientaire 2000C Made in USA

AMB1

Ambient Collection of Welding Smoke

The Ambient Air 2000C is an economical, self-contained free-hanging system for multi-stage media general back- ground air cleaning of dust, smoke, soot or other airborne particulate contaminants.

Mounting Hardware and Remote Switching

Mounting Hardware and Remote Switching  are included. The Ambientaire 2000 is an ideal choice for light-to-medium duty applications such as automotive refinishing, sanding, buffing or welding, at a rate of 2000 cfm. A direct-drive centrifugal blower draws polluted air through a disposable multi-vee filter and then through a high-efficiency, multi- pocket vee-bag filter. A unique hanger rod supports the vee-bag loops. The rod support system eliminates bunching, so maximum filter area is utilized. The multi-pocket vee-bag filter traps fine particulate that passes through the initial filters. Clean air passes through the back of the unit via four-way adjustable vanes. To remove large particles like wood and grinding dusts, use the optional high-capacity prefilter. The three-sided, clean-able, wrap around, high-capacity prefilter extends the life of the disposable filters.

Features:

  • 2000 CFM Airflow
  • 48 Long x 24 x 24
  • Direct Drive Blower, 3/4HP Open Motor
  • 115V 60HZ Single Phase / Optional Voltage Available
  • Heavy Duty 16-Gauge Welded Steel Cabinet
  • Power Cord with Top-Mounted 2-Speed Rocker Switch for Easy Installation
  • Tool-less and Quick Filter Changeout
  • Internal Bag Support Rod for OptimumFilter Surface Area
  • Two-Stage Filtration
  • 24 x 24 High-Capacity Pleated Filter
  • 24 x 24 x 22 High Loft 95% Fiberglass Media Bag Filter with 84 Square Feet of Media
  • Industrial Powder Coat Kelly Green Finish
  • 67dba at Exhaust, 60 dba at inlet
  • Adjustable Outlet Louvers
  • Minihelic Gauge
  • Mounting Eyebolts for Ceiling or Wall Mount
