VCF and HCF Cartridge Collector
The HCF can be ceiling mounted if there is no floor space. The VCF's vertical design gives it a tiny footprint.
The Vertical or Horizontal Cartridge Filtration systems are designed to provide efficient, cost effective control of dry dusts, and fumes,generated from sanding, grinding, welding, and other processes. Typically utilized for control of moderate to heavy concentrations of dry contaminates, the VCF and HCF series collectors are provided with self-cleaning, pulse-jet filter cleaning to minimize maintenance and reduce replacement filter costs.

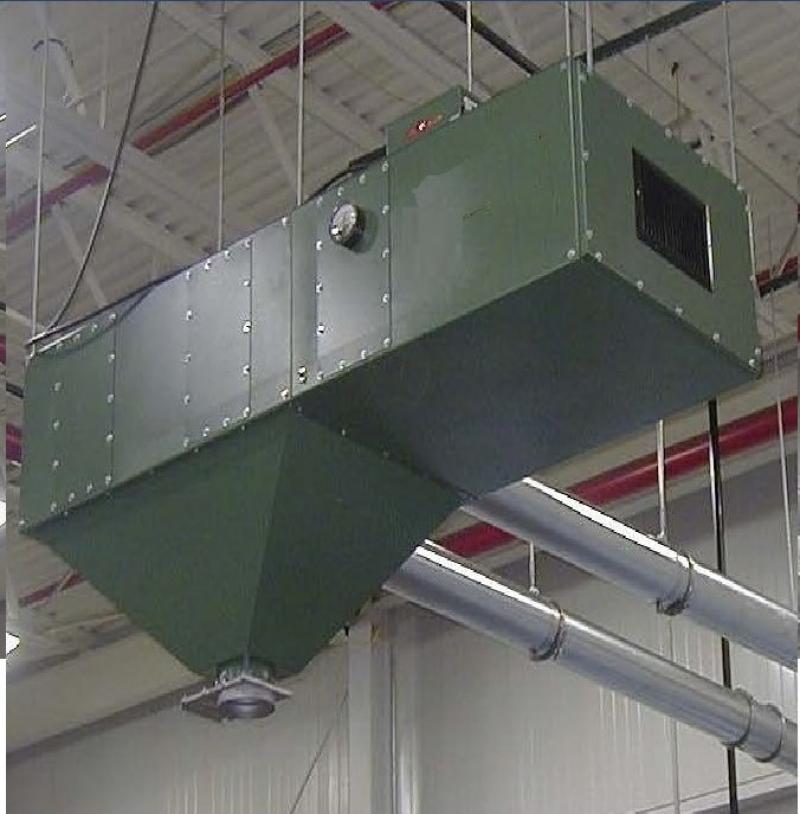

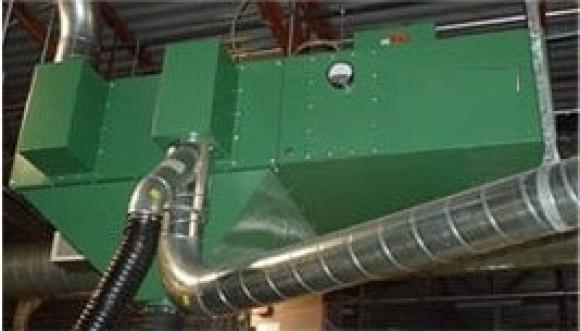

HCF units are usually suspended from above with eye-bolts and chains. VCF units are floor-mounted, or mounted with a hopper and stand. The VCF/HCF units are a self-contained, ready to be powered, compact source capture collector to satisfy many industrial requirements. For sticky laser welding dusts we add our PTFE coated cartridge filter. These sticky dusts normally plug up the pores of a conventional cartridge, but with the PTFE cartridge it pulses right off.

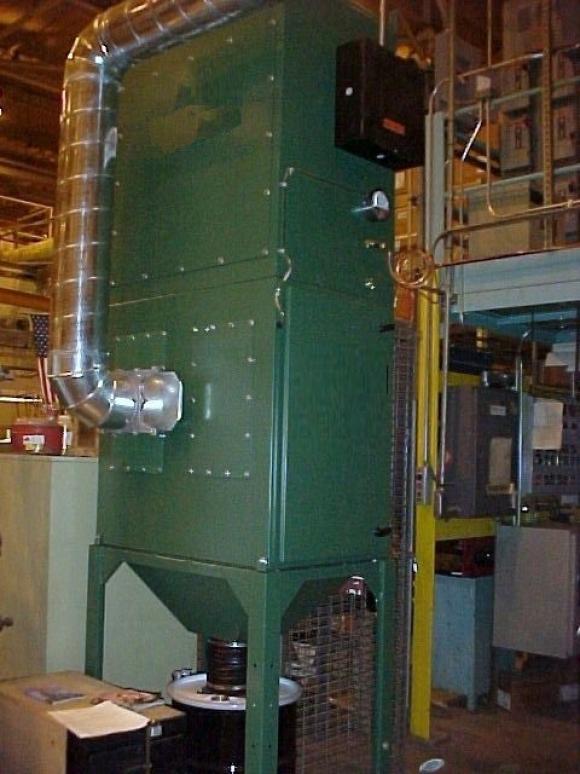

VCF Series - Vertical Dust Collectors

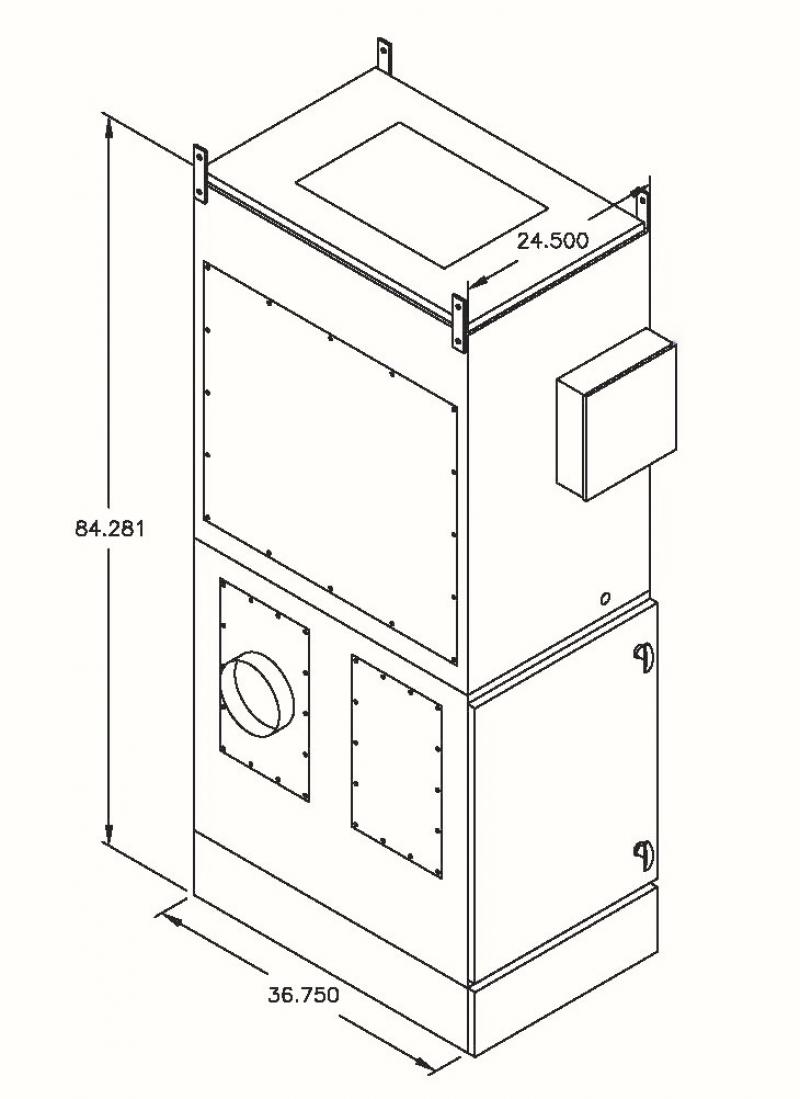

The VCF Dust and Fume Collectors have a very small footprint for the amount of filter area and CFM that they deliver. At less than 25" Wide, the VCF-2 is a great all-day production grade dust collector that takes up very little space. Click THIS-LINK to see a Dimensional Drawing. Built to order right here in the USA, the VCF Dust Collectors can be configured in multiple ways providing very efficient dust collection while returning clean, breathable air back into the work space. When working with very fine powders, a smaller dust collector might provide enough cfm, but they can fall short when it comes to overall filter surface area.
VCF-1 Features:
- Nominal 750 CFM, 1 vertical cartridges Dust Collector
- Very quiet 68 dba at 3 ft
- Filters out dry dust and fumes
- PTFE coated cartridge for laser welding dust
- HEPA-like cartridges provide 274 square feet of filter that can achieve 99.97% efficiency
- Unique self-cleaning pulse jet systems
- Push button manual controlled air pulse cleaning, resulting in low filter maintenance
- Removable dust drawer is standard
- Filter pressure gauge indicates when to change filters
- Low noise level below 70 dBA
- Small footprint of 24.876 inches by 24.5 inches compared to the competition
- Overall height, including a dust drawer, is 72.3 inches
- Constructed with heavy 14-gauge metal, assuring extensive durability
- Heavy textured powder coat paint finish for durability
- The distinct clamping mechanism allows for a simple tool-less filter change
- Non-overloading direct drive blower, powered by a 1 1/2 HP motor delivers 750CFM
- Two options for inlet locations, utilizing plenum boxes eliminate 90-degree elbows and simplifies ductwork installation
VCF-2 Features:
- Nominal 1500 CFM, 2 vertical cartridges Dust Collector
- Very quiet 73 dba at 3 ft
- Filters out dry dust and fume
- HEPA like cartridges provide 548 square feet of filter that can achieve 99.97% efficiency
- Optional washable spun bond or NANO fiber cartridge filters
- PTFE coated cartridge for laser welding dust
- Optinal HEPA after filter
- Unique self-cleaning pulse jet systems
- Automatic timer controlled air pulse cleaning, resulting in low filter maintenance
- Filter pressure gauge indicates when to change filters
- Low noise level below 70 dBA
- Small footprint of 36.75 inches by 24.5 inches compared to the competition
- Overall height, including a dust drawer, is 84 inches
- Standard is a removable dust drawer, option is a hopper with an adjustable stand for a 5, 30 or 55 gallon pail or drum
- Constructed with heavy 14-gauge metal, assuring extensive durability
- Heavy textured powder coat paint finish for durability
- The distinct clamping mechanism allows for a simple tool-less filter change
- Non-overloading direct drive blower, powered by a 3 HP motor delivers 1500CFM
- Four options for inlet locations, utilizing plenum boxes eliminate 90-degree elbows and simplifies ductwork installation

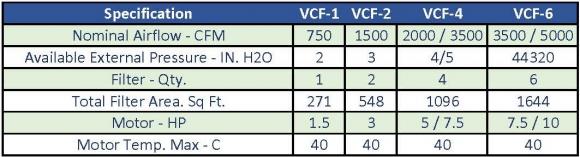

VCF Specifications:

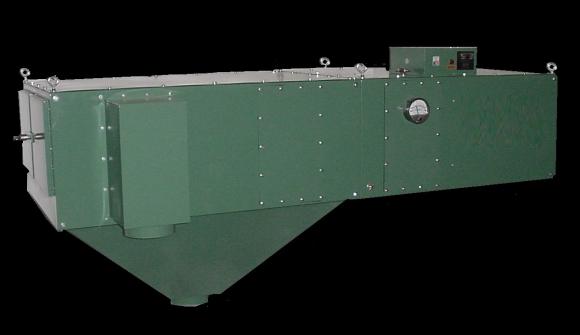

HCF Series - Horizontal Dust Collectors

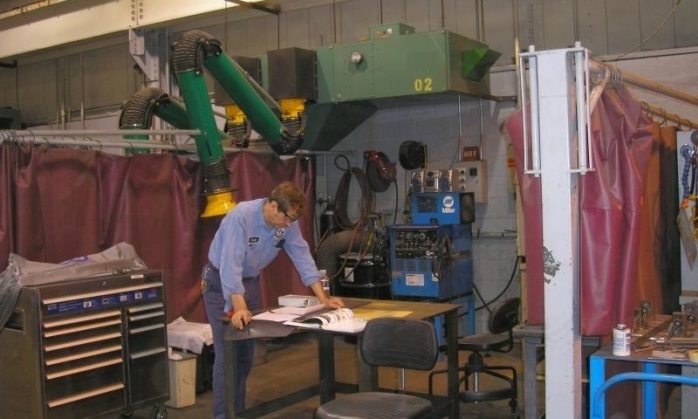

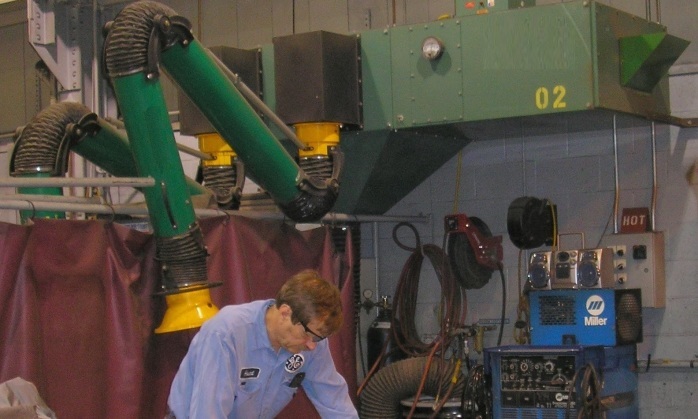

The HCF Series is a ceiling hung collector which has four horizontal cartridge filters used for dust or fume collection. With the addition of extraction arms mounted to the side of the unit the HCF is a great collector for weld fume. By adding an ambient inlet this unit can be hung from the ceiling to circulate the air inside of a manufacturing shop.
HCF Specifications:
* not including arm box or collar
- Filters dry dust, fume, and general airborne dry particulate
- HEPA like cartridges provide 960ft2 of filter that can achieve 99.97% efficiency
- Unique self-cleaning pulse jet system
- Can be configured as either a ducted unit or an ambient unit
- The HCF Collector is a horizontally mounted and hanging cartridge collector to filter airborne dust and fume. The cartridge filters are automatically cleaned with a pulse of air. Two configurations are available; an ambient style and a ducted version.
- Replacement Filters Available
