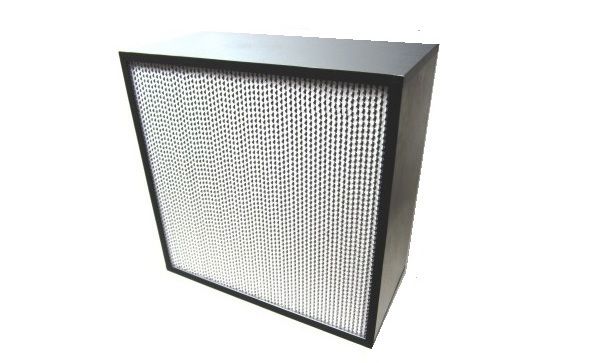

HEPA Filter for Dust Collector
HEPA filters certified to be a minimum of 99.97%, 99.99%, or 99.999% efficient on 0.3μm per Mil. Standard 282.
HEPA Filters for Contamination Control
HEPA Filters for critical environments
Both Microbarrier HEPA and HEPAMAX™ filters are available in a variety of styles to meet your demanding application needs. The Microbarrier HEPA is our standard capacity HEPA rated at 250 FPM with an initial resistance of 1.0″ w.g. The Microbarrier HEPAMAX™ is our high flow model with more media than our standard version and is rated at 500 FPM with an initial resistance of 1.4″ w.g.
- Variety of frame materials – both MDF and metal with optional faceguard
- Glass microfiber media packs made in quality controlled manufacturing facility
- Rolled and tapered aluminum separators
- Efficiencies available from 99.97% to 99.99%@ 0.3 ųm
- Gasket and gel seal available
High Temperature HEPAs
HT filters are designed for the challenging environments of high temperature applications where high demands are placed on HEPA filters. Microbarrier HEPA & HEPAMAX™ high temperature filters are rated up to 500 °F (260 °C). MANN+HUMMEL’s quality controlled manufacturing facility ensures that you receive the highest quality products.
- Rated up to 500 °F (260 °C)
- Quality controlled manufacturing facility
- Fiberglass microfiber media packs
- Rolled & tapered aluminum separators
- Available efficiencies from 99.97% to 99.99% @ 0.3 ųm
- Available in standard & high flow models
- Gasket seal
Microbarrier HEPA MP/HEPAMAX MP
Microbarrier HEPA MP & HEPAMAX™ MP standard depth is just 11½" (292 mm) deep to offer easy replacement for separator style filters. MANN+HUMMEL utilizes the latest in mini pleat technology to produce an approximately 5" (130mm) deep media pack for the Microbarrier HEPA MP. This mini pleat pack, though only 5" deep, offers a low initial resistance of only 0.95" w.g. (236 PA) at 250 FPM (1.3 m/sec).
- 5.12′′ (131 mm) HEPA MP and 8.66′′ (220 mm) HEPAMAX MP deep media packs
- Variety of frame materials - both MDF particleboard and galvanneal
- microfiber media packs made in quality controlled manufacturing facility
- Mini pleat technology
- Efficiencies available from 99.97% to 99.99% @ 0.3 μm

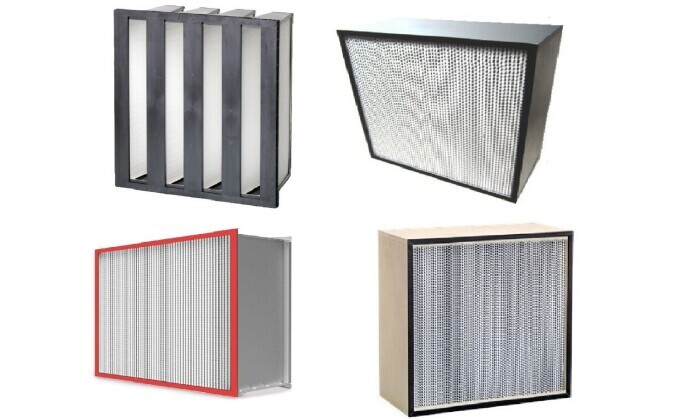

ABSOLUTE VGHF V-Bank Filter HEPA
High capacity HEPA/ULPA grade filter in an all-plastic enclosing frame with poured-in-place sealing gasket. Our HEPA filters are available in a variety of framing materials, such as galvanized steel, aluminum, stainless steel, and particleboard. Frame types include DTF (double turned flange), single and double-header, box, groove seal, reverse groove seal, and C-style in metal. Inwood, frame styles include box, groove seal, single, and double-header. Three flow rates are available to meet varying fan capacities: Standard, Low Resistance, and High Capacity. The standard models can be utilized up to 220ºF (104ºC), and 100% RH.
A High-Temperature version is available for temperatures up to 500 ºF (260ºC); call our toll-free number for prices. Our HEPA filters are designed to meet the critical filtration requirements in places where airborne contaminants can cause damage to manufacturing processes and equipment and present health hazards. Only materials that meet our stringent quality standards are utilized. All manufacturing steps are closely monitored to ensure every filter performs as expected. No matter what brand of cartridge filter you have, we have a direct cross reference for that part number. We have quantity discounts, and we can ship anywhere in the continental United States!
ADVANTAGES - Incinerable Compact HEPA filter with header
frame
We carry OEM Filters for all brands of Dust Collectors and XP dust Collectors. All filter scan-tested acc. EN 1822:2009 and individually packed in PE-foil. Other editions on request Variant: Filter also available with flat gasket.
