XP VAC HOSE WITH COPPER BONDING WIRE
StatMax Grounded Vacuum Hose
Food Grade Vacuum Hose with Grounding Wire
Vacuum hoses for use in NFPA Class I and II - Div. 1 and 2.
Construction: Specially formulated static dissipative thermoplastic polyurethane hose
reinforced with a rigid external ABS helix & an embedded copper grounding wire
Temperature Range: -40°F to 200°F
Standard Color: Clear Wall with Black Helix
Standard Lengths: 25 & 50 Feet
Surface Resistivity Level:108 - 1010 Ohms/Square

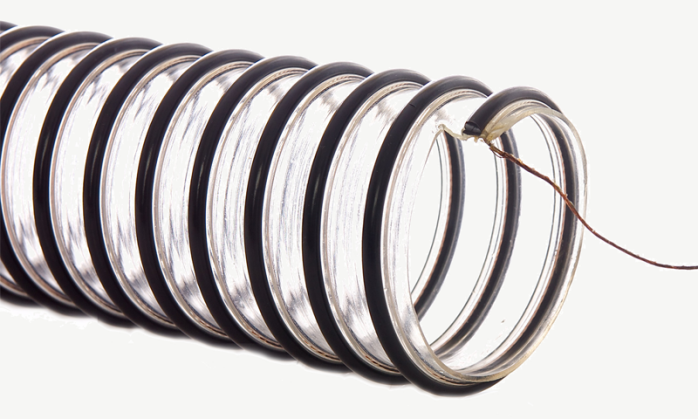

A copper grounding wire is embedded within the helix of a urethane hose that is made with conductive resins. The conductive urethane hose wall dissipates static instantly, while the embedded wire gives you tip to tail grounding.
Ideal for use with Expolosion-Proof Vacuums in NFPA Class I, Div 1, Group D and Class II, Div 1, Groups E, F, and G environments.
Conductive urethan construction with embedded copper wire for grounding
Click HERE to see our vacuum Tools and Accessories Brochure
Engineering & Technical Data
| INSIDE DIAMETER (IN) | APPROX. WEIGHT (LBS/FT) | CL BEND RADIUS (IN) | NEGATIVE PRESSURE (IN/HG) |
|---|---|---|---|
| 1 | .17 | 1.5 | 29 |
| 1.25 | .21 | 1.9 | 29 |
| 1.5 | .24 | 2 | 29 |
| 2 | .3 | 2.5 | 29 |
| 2.5 | .5 | 5 | 28 |
| 3 | .55 | 5.5 | 26 |
| 4 | .75 | 6 | 22 |
| 5 | 1 | 7 | 18 |
| 6 | 1.25 | 7.75 | 12 |
| 7 | 1.5 | 10 | 11 |
| 8 | 1.75 | 12 | 10 |
