Centralized Vacuum Systems for Seamless Extraction at Multiple Stations. With HEPA Filtration, these Centralized Vacuum Systems return clean breathable air back into your work area.

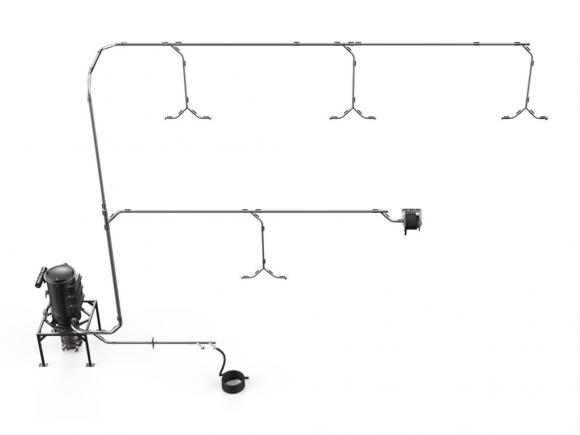

Multi-operator Central Vac Systems
Sizing of a centralized vacuum system
Click HERE for the Central Vac Questionnaire Form
1) What is the dust?
2) What are the KST & PMax values of the dust?
3) What is the bulk density per cubic foot for the dust?
4) How many operators at one time will be vacuuming worst case?(1,2,3,4,more?
5) How much volume will be vacuumed per cleanup?(1, 5,10,25gallons,more?
6) How long of a hose would you like for each operator? (10,15,25?)
7) From where the main vacuum will sit outside to the furthest pickup point how far is it? (25,50,100' more?)
8) How many floors or levels will the pipe run?
9) Will you be vacuuming any liquids?
10) Do you want BIBO? (bag in bag out)
11) Do you need HEPA?
12) What do you want the vacuumed material to go into? drum, hopper? bulk bag? other?
Email your answers to: sales@controlledairdesign.com
Once you complete the Vacuum Questionnaire, we will prepare a formal quote based on your unique application.
Video showing central vac collection of polyethylene filaments

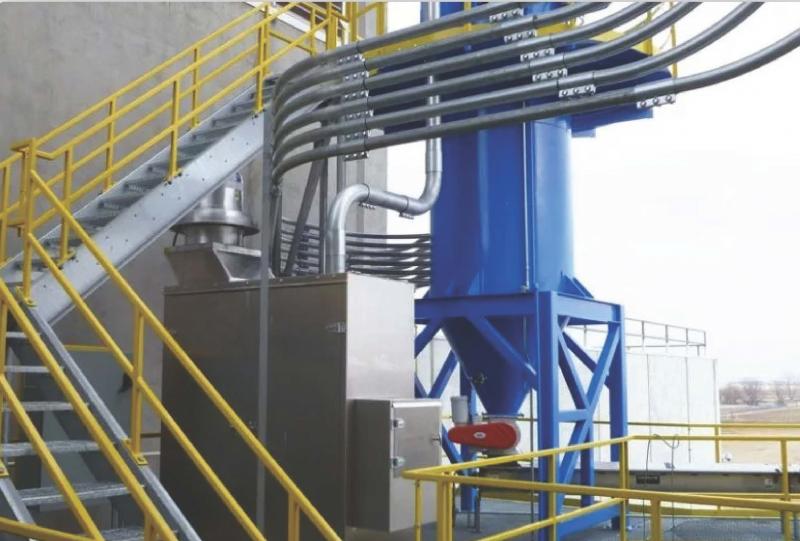

We can supply the Tubing and Fittings for your project. We have carbon steel, aluminum, stainless, and galvanized. There are two main ways of joining everything: Bolt-Couplings and Expanded ends/Shrink Tubing. We have a full selection.
At the heart of the system is the Suction Unit. Several factors, including bulk density of material, quantity being vacuumed, number of operators, will determine which suction unit will work for you.

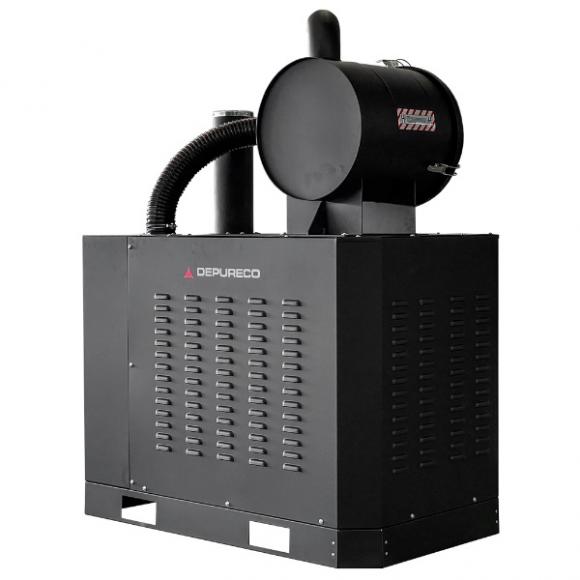

The CVS suction unit has forklift pockets for easy transportation and up to 29.5 HP.
The unit can be equipped with H14 HEPA Filters.

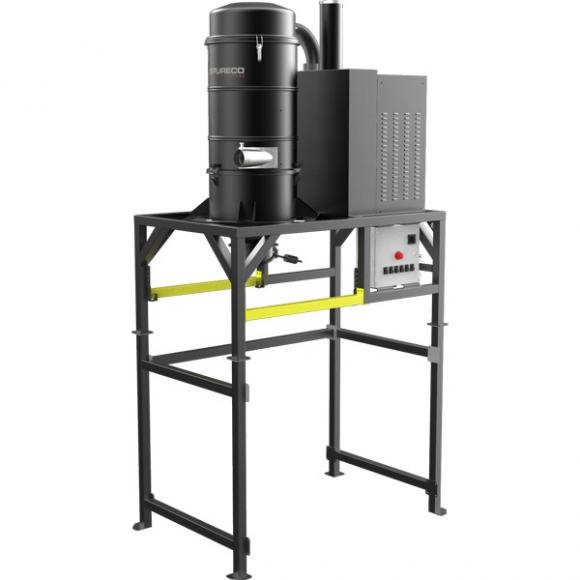

HF Suction Unit
HF Suction Unit
Designed for centralized systems, the HF industrial vacuum ensures exceptional performance in fixed applications. Its robust powder-coated steel frame provides a sturdy foundation, while the powerful turbine, located at the back of the vacuum and protected by a sheet metal cover, delivers impressive suction power while reducing noise levels. The vacuum features a spacious cylindrical chamber at the front, equipped with a large surface filtering system that includes four independent anti-static polyester cartridges. These cartridges effectively capture dust particles as small as 1 micron. To maintain optimal filter performance, the vacuum incorporates an automatic cleaning system. With a burst of compressed air at 6 bar, the system dislodges dust from the cartridges, causing it to fall into the collection cone, ensuring continuous operation with consistently clean filters.
Filtration and Collection Chambers

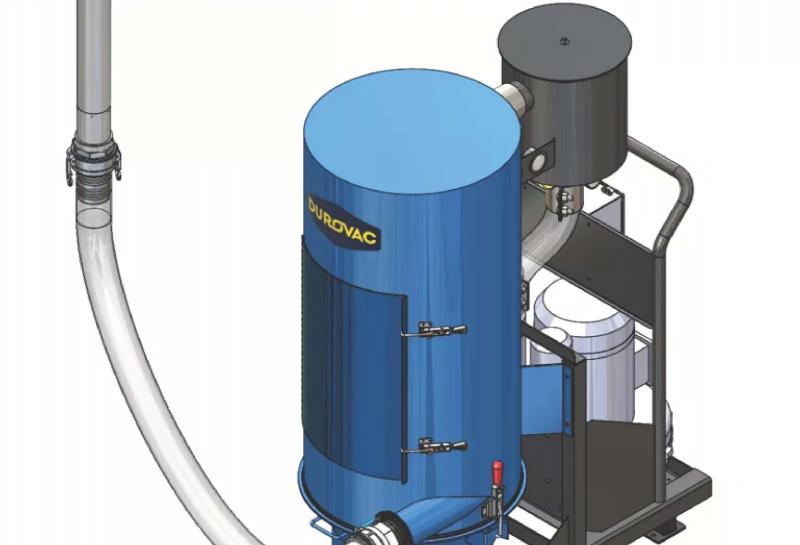

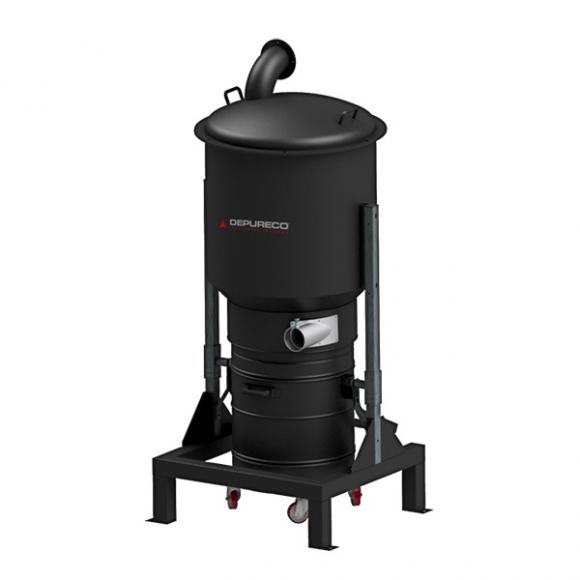

Filtering Pre-Seperator 800
The filtering system consists of filter cartridges made of aluminized polyester, certified as class M with a filtration efficiency of 1 micron. The cartridge system enables effective counter-current cleaning, ensuring thorough filter cleaning without interrupting the suction process.
For unloading purposes, various options are available, including automatic unloading into big bags, open-top containers, or process belts, providing flexibility based on specific needs and requirements.

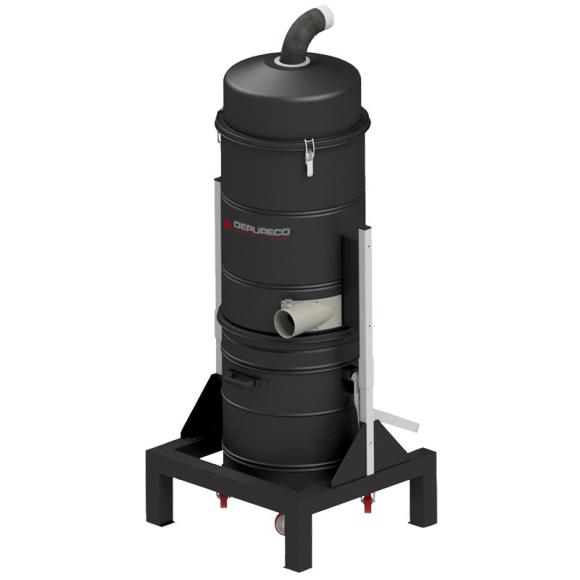

Filtering Pre-Seperator 570
The filtering system consists of filter cartridges made of aluminized polyester, certified as class M with a filtration efficiency of 1 micron. The cartridge system enables effective counter-current cleaning, ensuring thorough filter cleaning without interrupting the suction process.
For unloading purposes, various options are available, including automatic unloading into big bags, open-top containers, or process belts, providing flexibility based on specific needs and requirements.
