PUMA HD HIGH POWER INDUSTRIAL VACUUM up to 1,500 CFM

PUMA2

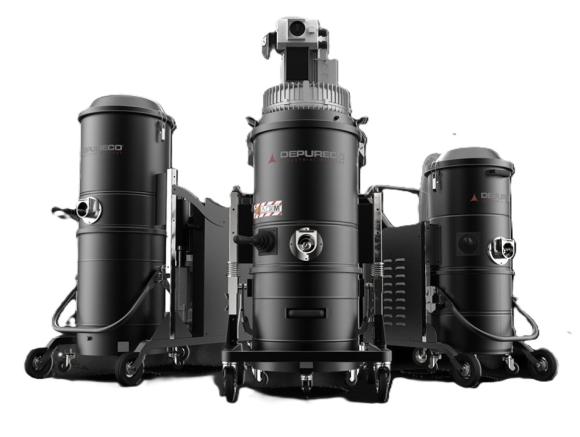

There are four vacuums in the range: PUMA 30P AND 30S, AND PUMA 35P AND 35S.

High power and high capacity industrial HEPA vacuums

PUMA HD HIGH POWER INDUSTRIAL VACUUM

PUMAH30
High power and high collection industrial vacuums up to 39 HP for high bulk-density materials.

Depureco’s high power three-phase range includes the Puma series, which are heavy-duty industrial vacuums designed for demanding tasks. These vacuums feature high-quality, double-stage side channel blowers manufactured in Italy, ensuring a maximum flow rate of up to 1500 CFM, providing powerful airflow. The vacuum breaker safety valve is a standard inclusion. With a tangential intake design and a robust cyclone securely welded inside the filter chamber, the Puma vacuums guarantee exceptional efficiency, even when dealing with the finest dust particles. This design effectively protects the filter from the vacuumed material. The material enters tangentially, encounters the cyclone, and due to the generated friction, reduces speed before falling directly into the container.

Click HERE to see a brochure with full specifications

FAQ section:

Plus (click or tap to expand) + What applications is the PUMA good for?

  • Sandblasting and Painting
  • Large Chips / Debris
  • Foundries
  • Factories
  • Blast Recovery
  • Mining
  • Aerospace
  • Food Grains and Ingredients
  • Wastewater Treatment
  • Ship Cleaning



Plus (click or tap to expand) + How powerful is the PUMA?

Up to 28.6 HP | 480V 3∼

6,975 sq in of filter

46-gal capacity

Up to 1,500 CFM

Plus (click or tap to expand) + Who do I call for parts and service?

6 days a week - Monday to Friday call or text: (919) 739-2738 for parts and support

Click this video to see a presentation:

Filtration Options

FO

Anti-Static Cartridges and PLC Control

FCO
Automatic reverse jet, anti-static M Class (EN-60355-2-69), 3 cartridges, 97 sq ft of filter area.

As well as a wide variety of filter bag media available, the PUMA can also take anti-static cartridge filters. Full PLC functionality compatible with most PLC systems.

Fully static dissipating vacuum design and lots of flexibility.  The standard M class polyester filter might not work for you if you have high temps. In that case we have NOMEX. If your particulate is sticky or tacky,  the solution is an anti-static bag filter made with a coating that will repel everything as the dirt and dust just glides down into the hopper.

For the final filter stage we have a HEPA that is efficient down to .3 micron @99.97% allowing the unit to double as a HEPA air cleaner.

Mobility

fl

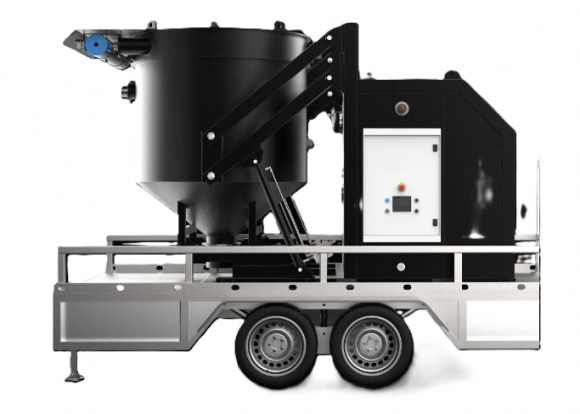

Can be easily moved with forklift or crane. There is also a portable version.

The Stationary version is highly moveable with forklift or with the supplied eye-bolts for moving it with a crane. We also offer a tipping forklift caddy that will allow you to empty something like a 55 gallon drum.

There is a wide variety of options to chose from. Click on the brochure link at the bottom for more information.

The filtration options and the filter media options are too numerous to cover in a paragraph. Your material might require a filter that can handle heat, you might have sticky dust, or a wide variety of anomolies that are unique to your application. In which case, a normal polyester filter could be a disaster for your needs.  If you call us at (800) 635-0298 we will examine your application and quote the right version of this vacuum with the right filtration for your material and conditions.

In addition to a wide variety of filter choices, we also have a wide variety of filter cleaning mechanisms. We can even fit your vacuum with cartridge filters if the application calls for it.

Specifications:

PUMA 30P / PUMA 30S PUMA 35P / PUMA 35S
Motors | Type Side Channel Regen Blower Side Channel Regen Blower
Voltage | Frequency 480/60 480/60
Maximum air flow 1,354 CFM / 776 CFM 1,430 CFM / 776 CFM
Noise level-(EN ISO 3744) 78 dB(A) 78 dB(A)
Power 30 HP 30 HP
Vacuum continuous use 64 inH2O / 176 inH2O 110 inH2O / 176 inH2O
IP | Insulation Class 55 | F 55 | F
Filter Type Star filter Star filter
Class EN 60335-2-69 M Class M Class
Media Polyester Polyester
Filter cleaning system Electrical filter shaker Electrical filter shaker
Surface area 17,100 in² 17,100 in²
Dimensions 41.3 X 76.8 in 41.3 X 76.8 in
Height 90.55 in 90.55 in
Weight 1,235 lb / 1,367 lb 1,442 lb / 1,433 lb
Bin Capacity 175 gal 175 gal
Relief valve Included Included
Conic cyclone Included Included

Multi-operator Central Vac Systems

Multi-operator Central Vac Systems

CS
Centralized Vacuum Systems for Seamless Extraction at Multiple Stations.

Centralized Vacuum Systems for Seamless Extraction at Multiple Stations. With HEPA Filtration, these Centralized Vacuum Systems return clean breathable air back into your work area.

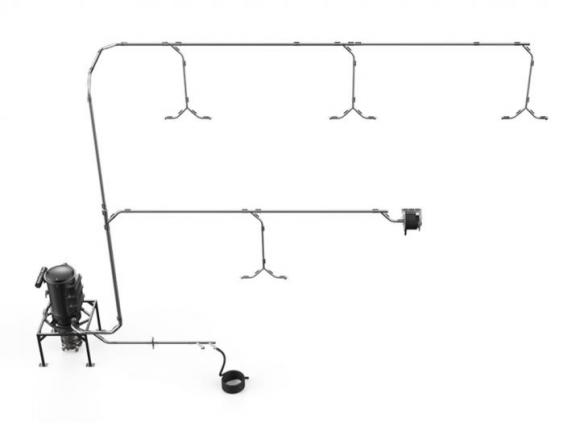

A typical layout:

Layout

Sizing of a centralized vacuum system

Plus (click or tap to expand) + Click HERE for the Central Vac Questionnaire Form

1) What is the dust?

2) What are the KST & PMax values of the dust?

3) What is the bulk density per cubic foot for the dust?

4) How many operators at one time will be vacuuming worst case?(1,2,3,4,more?

5) How much volume will be vacuumed per cleanup?(1, 5,10,25gallons,more?

6) How long of a hose would you like for each operator? (10,15,25?)

7) From where the main vacuum will sit outside to the furthest pickup   point how far is it? (25,50,100' more?)

8) How many floors or levels will the pipe run?

9) Will you be vacuuming any liquids?

10) Do you want BIBO? (bag in bag out)

11) Do you need HEPA?

12) What do you want the vacuumed material to go into? drum, hopper?    bulk bag? other?

Email your answers to: sales@controlledairdesign.com

Once you complete the Vacuum Questionnaire, we will prepare a formal quote based on your unique application.
