We can't use a dust collector that has cartridge filtration as our material gets wedged in the pleats. Can you help?
STAINLESS STEEL PORTABLE DUST COLLECTOR | EXPLOSIVE POWDERS
All stainless construction for wash down. NFPA 652 compliant for XP dusts.
XP ORDLOC DUST COLLECTOR | HEPA | CARBON | ROBOTIC CELLS
ALL STAINLESS, OR STAINLESS ARM AND BIN WITH MILD STEEL BODY
IN BOTH UNITS THE DUST ONLY MAKES CONTACT WITH STAINLESS
CONTINUOUS | PLC | AUTOMATIC

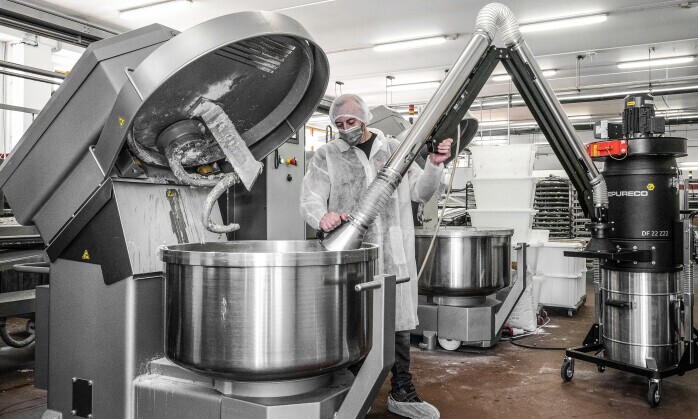

Designed for hands free operation making it ideal for production and robotic cell use. Highly portable and ergonomic XP dust collector for collection of ST1 XP Dust for batching and pouring. Built in Italy, cleverly designed, small footprint, and very easy to maintain. Parts and filters are always on hand. Portable units and arms are usually in stock for immediate shipment.
Our filtration isn't one size fits all. We have lots of options.
The standard M class polyester filter might not work for you if you have high temps. In that case we have NOMEX. If your particulate is sticky or tacky, a cartridge filter will be a disaster as the dust ends up wedged deep in the filter pleats. The solution is an anti-static bag filter made with a coating that will repel everything as the dirt and dust just glides down into the hopper. For the final filter stage we have a HEPA that is efficient down to .3 micron @99.97% allowing the unit to double as a HEPA air cleaner.
Do you offer cartridge filtration with AUTOMATIC PLC controlled Pulse-Jet?

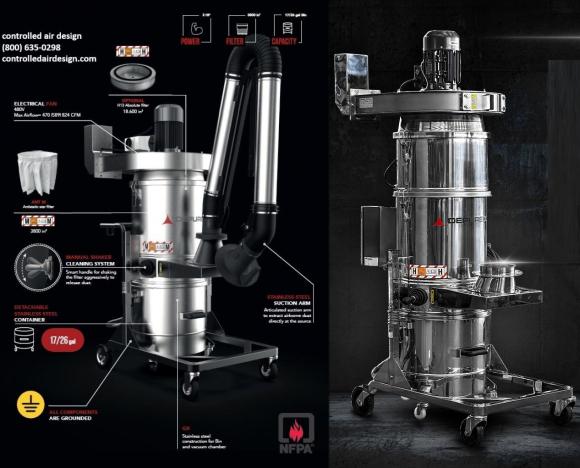

COMPACT XP DUST COLLECTOR | 824 CFM
See the brochure link at the bottom of the page for greater detail
Specifications:
| UNITS OF MEASURE | DF 22 NFPA | |
|---|---|---|
| Motors | Type | Fan | |
| Power | HP | 3 |
| Voltage | Frequency | V|Hz | 460/3/60 |
| Maximum vacuum | inH2O | 13.8 | 13.8 | 13.8 |
| Maximum air flow | CFM | 470 | 589 | 824 |
| Inlet | Ø in | 3.94 | 4.72 | 5.90 |
| Noise level - (EN ISO 3744) | dB(A) | 73 |
| Bin capacity | gal | 17/26 |
| Dimensions | in | 25.98 X 31.50 X 64" |
| Weight | in | 264 |
| Primary filter | ||
| Type | Star filter | |
| Surface area | Diameter | in² | in | 3800 |
| (Class EN 60335-2-69) | M Class | |
| Media | Antistatic Polyester | |
| Filter cleaning | Manual | |
| Absolute filter (optional) | ||
| Surface area | in² | 18.600 |
| (Class - EN 1822) | H13 | |
| Media | Fiberglass |
