Modular Filtration Unit for Wood Dust Applications
The Coral ICON Series, and FM10 Ready Filter units are the most affordable and practical solution for commercial and industrial wood dust applications.
Jump To:

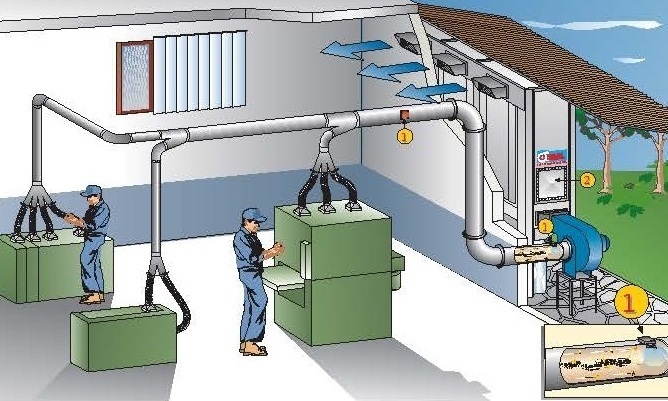

Woodworking Dust Collection
Wood dust can be explosive if the right conditions exist. It is considered an XP dust by OSHA, therefore safe handling of dust with proper equipment is good for safety and productivity. Ceiling mounted Ambient Units are hazardous for wood dust, and they can lead to OSHA violations. Buy it once and buy it right with a unit that is designed from the ground up to be safe and extremely effective.
Non-Sparking, High-Efficiency, Wood Dust Collector. Cartridge or Bag Filters.
Don't waste money on shop vacs. They have intermittent duty motors and they don't deliver enough CFM to stop the dust from laying down in the duct work. When you call us we ask about how many operators, the type of wood you are cutting, how many hours per day, etc. All of these citeria are used to mathematically determine how many CFM you need for proper operation.
Click HERE for full specification for the Coral ICON Range
The Coral ICON wood dust collector is a fixed or mobile high-efficiency filter unit suitable for suction and filtration of air streams polluted with wood dust and chips.
Highlights
- “Plug & Play”: no installation required
- Minimum footprint
- Extreme ease of cleaning and maintenance
- High performance
- Can be equipped with cartridges with mechanized or manual cleaning system
Specifications:
| Model | CFM | Filter Area sq ft/HP |
|---|---|---|
| ICON 1C | 1,295 - 2,200 | 26.9 / 3 |
| ICON 2C | 1,766 - 3,000 | 53.8 / 4 |
| ICON 3C | 2,237 - 3,800 | 80.6 / 5.5 |
| ICON 4C | 2,943 - 5,000 | 108 / 7.5 |
| ICON 5C | 3,531 - 6,100 | 134 / 10 |
HD Industrial Woodworking Dust Collector

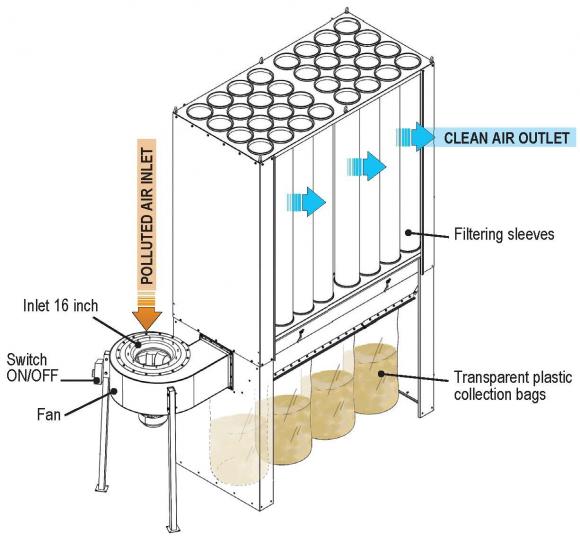

The FM10 READY is a 10hp 5000 cfm indoor dust collector with a total filtration area of 510 sq. ft. It is in full compliance with the latest NFPA rules & regulations.
With its space-saving design, high performance, and extremely low noise level, the FM10 READY is the most affordable and practical solution for your wood dust extraction needs. We usually have these Coral FM Ready units available for immediate shipment.
Email all the details of your application to: sales@controlledairdesign.com or call us at (800) 635-0298
Click HERE to see full a product brochure
Click HERE to see our line of Quick-Connect Ducting
- Fast & Easy Installation
- Space Saving
- Low-Noise Level
Specifications:
| FM10 READY FILTER UNIT | |
|---|---|
| Power | 10 HP |
| Supply Voltage | 230 or 460/3/60 |
| Fan Rotation Speed | 1750 RPM |
| Average Noise level | 79 dBA |
| Airflow | 5000 CFM |
| Static Pressure | 6" WG |
| Number of Filter Sleeves | 32 |
| Filter Surface Area | 510 sq ft. |
| Number of Collecting Bags | 4 |
| Waste Collection bags capacity | 34 cu ft. |
Features:
- Fast and Easy Indoor Installation
- Space-Saving Design
- Low Noise Level
