Industrial Vacuums for the Metal-Working Industry
Industrial vacuums for all aspects of metal-working. Coolant chip recovery, recovery of all kinds of machined metals, systems with pump in/pump out.
SUMP VACUUMS UP TO 30 GAL
M 70 OIL - OIL AND SWARF SUMP VACUUM
The M 70 OIL industrial vacuum cleaner is specifically designed to remove and separate oil and metal chips from tanks, machine tool tables, and guides. It utilizes two motors operating in parallel to ensure powerful suction capability.
The vacuum cleaners container is equipped with a metal basket that effectively separates the solid particles from the liquid components. Additionally, it incorporates a 150-micron nylon filter to enhance the filtration process.
Specifications
| MOTOR | PRIMARY FILTER | MACHINE |
|---|---|---|
| Motors | Type 2 | By-Pass | Filter Type PPL+oil filter included | Dimensions 27.55 X 17.71 in |
| Voltage | Frequency 120/60 V|Hz | Media Nylon | Height 56.69 in |
| Maximum vacuum 94 inH2O | Filtering efficiency 150 IFA | Weight 198 lb |
| Maximum air flow 230 CFM | Liquids Capacity 18 gal | |
| Noise level-(EN ISO 3744) 70 dB(A) | Solids Capacity 10 gal | |
| Power 2.7 ∣ 1∼ HP | Suction time 18/18 gal/sec | |
| Inlet 2 Ø in | Discharge Type By gravity |
M 100 OIL - OIL AND SWARF SUMP VACUUM
The M 100 OIL industrial vacuum is specifically designed for effectively vacuuming and separating oil and swarf from tanks, tables, and guides of tooling machines. To ensure exceptional suction speed, the vacuum utilizes three motors operating in parallel. The vacuum cleaner’s container is equipped with a metal basket, which aids in separating solid particles from the liquid. For enhanced filtration, a 150-micron nylon filter is incorporated. To prevent overfilling, the floating level switch automatically stops the vacuum when the container reaches its maximum capacity of 26 liquid gallons of emulsified oil. An external level indicator is present on the container, providing a clear indication of the liquid volume inside the machine. Discharging is achieved through a 1″ manual ball valve located at the bottom of the container, utilizing gravity. The M 100 OIL industrial vacuum features wheels for easy mobility, and it can be lifted with a forklift, simplifying the process of emptying the collected material. This enables the liquid to be poured into a collection of sediment bins.
Specifications
| MOTOR | PRIMARY FILTER | MACHINE |
|---|---|---|
| Motors | Type 3 | By-Pass | Filter Type PPL+oil filter included | Dimensions 27.56 X 17.72 in |
| Voltage | Frequency 120/60 V|Hz | Filtering efficiency 150 IFA | Height 55.12 in |
| Maximum vacuum 98 inH2O | Weight 198 lb | |
| Maximum air flow 336 CFM | Liquids Capacity 26 gal | |
| Noise level-(EN ISO 3744) 72 dB(A) | Solids Capacity 13 gal | |
| Power 3.3 HP | Suction time 26/26 gal/sec | |
| Inlet 2 Ø in | Discharge Type By gravity |
M70 OIL - Video
SUMP VACUUMS UP TO 75 GAL
FROG SUMP VACUUM
The FROG, an industrial vacuum cleaner from the OIL line, is specifically designed to efficiently vacuum and separate oil and swarf from CNC machine tanks. Equipped with standard features, this vacuum cleaner enhances cleaning operations and allows for the reuse of oil lubricants and coolants. In the Oil and Swarf range, Depureco utilizes the “reverse flow” system for liquid drainage, eliminating the need for additional maintenance and reducing the risk of pump clogging during liquid transfer.
Suction power is generated by two parallel-operating motors, ensuring optimal speed. The FROG industrial vacuum includes a 34 liquid gallons bin with a convenient quick-release metal basket, enabling efficient separation of solid and liquid components. The 150-micron filter enhances swarf filtration, ensuring effective performance.
To prevent overflow, an electrical level indicator is incorporated within the container, automatically stopping the airflow when maximum capacity is reached. The FROG comes with a comprehensive oil accessories kit, specifically designed for vacuuming CNC machines, as a standard feature.
Specifications
| MOTOR | PRIMARY FILTER | MACHINE |
|---|---|---|
| Motors | Type 2 | By-pass | Filter Type PPL+oil filter included | Dimensions 27.56 X 46.46 in |
| Voltage | Frequency 120 | 60 V|Hz | Filtering efficiency 150 IFA | Height 52 in |
| Maximum vacuum 94 inH2O | Weight 209 lb | |
| Maximum air flow 230 CFM | Liquids Capacity 34 gal | |
| Noise level-(EN ISO 3744) 70 dB(A) | Solids Capacity 11 gal | |
| Power 2.7 ∣ 1∼ HP | Suction time 34/30 gal/sec | |
| Inlet 2 Ø in | Discharge speed 34.34/50 gal/sec | |
| Discharge Type Reverse flow |

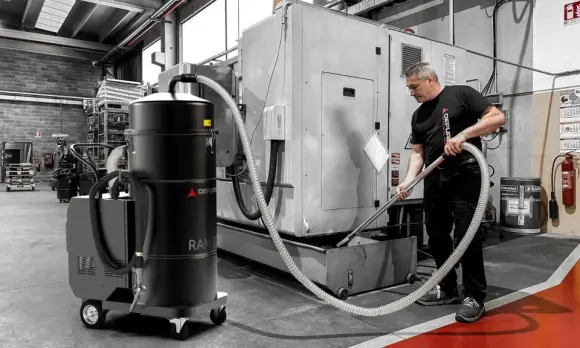

RAM OIL 280 MP SUMP VACUUM
The RAM OIL 280 MP industrial vacuum cleaner, featuring a capacious of 74 liquid gallons tank, is widely utilized for cleaning CNC machine tanks. It excels in both cleaning speed and replenishing oil lubricants-coolants within the tanks, efficiently vacuuming metal shavings and swarf.
Professional-grade suction power is generated by 3 powerful by-pass motors activated by a single switch, ensuring exceptional vacuum speed and efficient liquid replenishment. The vacuum cleaner’s tank features a convenient quick-release metal basket for efficient separation of solid and liquid components. With a 150-micron filter, it achieves more effective filtration of swarf. With an externally mounted pump, the tank can be rapidly emptied, leaving no residue behind. Since the pump is mounted externally, the full capacity of the tank can be utilized. The vacuum cleaner comes standard with the oil and chip accessory kit and includes a convenient accessory basket and two hose holder hooks.
To prevent overflow, an electrical level indicator within the container automatically stops the airflow once the maximum capacity is reached. The vacuum cleaner comes equipped with a pivoting suction inlet and the perfect oil accessories kit as a standard feature, specifically designed for vacuuming CNC machines.
| Motor | Primary Filter | Machine |
|---|---|---|
| Motors | Type 3 x Bypass motors | Filter Type Bag | Dimensions 27 x 57 in |
| Voltage | Frequency 120 | 60 V|Hz | Media PPL Nylon Polypropylene | Height 55 in |
| Maximum vacuum 98 inH2O | Weight 333 lb | |
| Maximum air flow 336 CFM | Liquids Capacity 74 gal | |
| Noise level-(EN ISO 3744) 72 dB(A) | Solids Capacity 11 gal | |
| Frequency 60 Hz | Suction time 74/63 gal/sec | |
| Power 3.3 | 1~ HP | Discharge speed 74/60 gal/sec | |
| Inlet 2 Ø in |
