Self-Cleaning Welding Fume Collectors
Portable Continuous-Duty Solutions for all day capture of welding particulate and gases.
Coral Jetclean DF
Continuous Fume Extraction with Spark Chamber
Sparks are quenched in the settling chamber before the fume passes through the filters
The JetClean features a TEFC motor that allows it to operate all day
The JetClean features a TEFC motor that allows it to operate all day. The internal spark-quench chamber forces incoming glowing embers and gases into water within a drop-out chamber. The HEPA Module filters contaminants down to .3 microns at 99.97% efficiency and reduces noise levels. Once the sparks are quenched in the water, the air continues its path toward the main filters. Designed for heavy-duty, all-day use, the JetClean has a unique filtering system and an induction motor for continuous operation.
Stainless steel welding and grinding applications can produce hex-chrome as a by product. It is a know carcinogen and it requires HEPA Filtration and efficient capture.

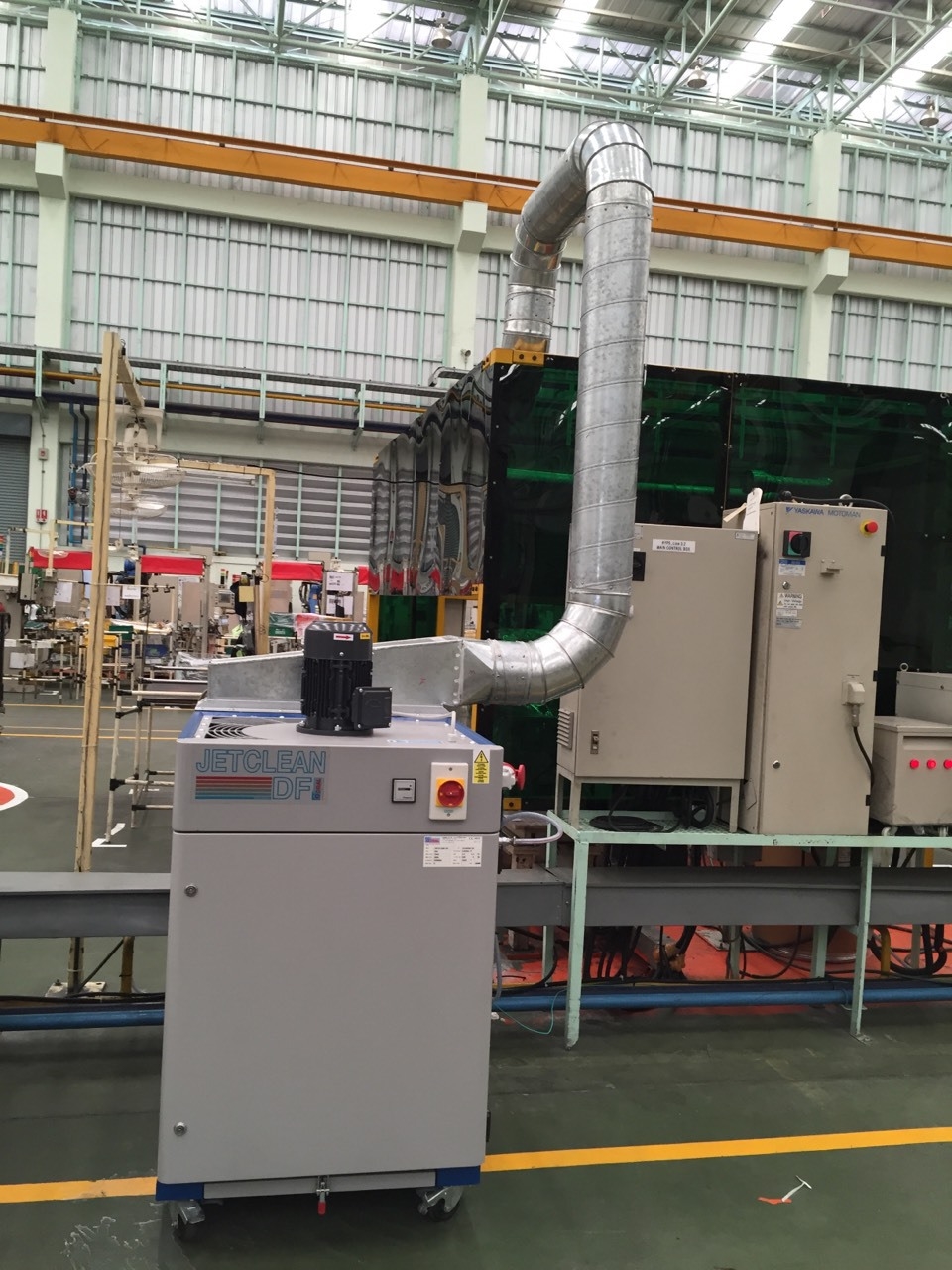

Can can attach a 6 inch duct for direct source-capture
Dual Cartridge Filters and H13 HEPA | Unique Filter Design
FR Filters | Water Bath for Embers
Stainless Steel Container with Water for Sparks

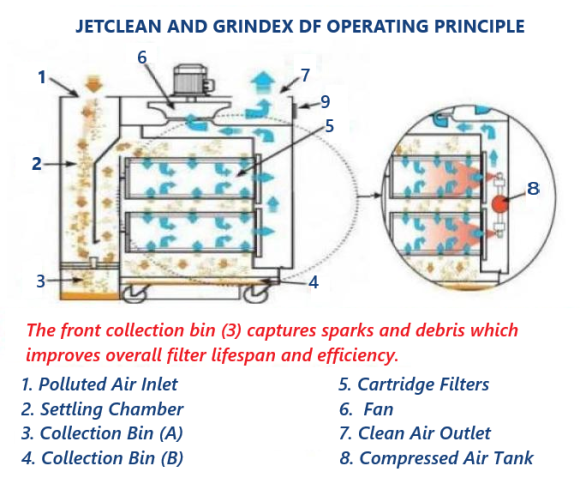

First the fumes and sparks are forced through a drop-out chamber, and then as a final precaution the fume and any remaining embers drop into a water tray.
Our cartridge filters are rated FR but maintenance and proper due diligence are still a must. Keeping spare filters on hand is a good idea also. The cartridge can last anywhere from 6 months to a few years. It is something that is dependent on each individual application.

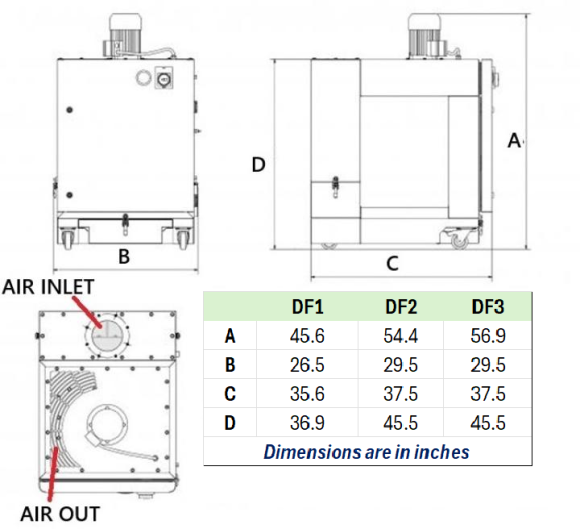

Dimensions for all three models of Jetclean and Grindex DF
The AUTO-Clean Pulse Jet Allows Hands-Free Operation
The AUTO-Clean Pulse Jet allows hands-free operation making it ideal for automated processes such as robotic cells and production lines. The 1.5HP Jetclean DF2-1.5 is an all-day welding and cutting fume extractor. The main filter cartridges are efficient to 99.97% @ .5 micron. We can also add HEPA or 38 lbs. of carbon for harmful VOC and dusts when the application calls for it. The Jetclean units are in stock for immediate shipment.
HEPA, Carbon, and Silencer Plenums
Click HERE to see the range of SILENCER, HEPA and CARBON Plenums
Internal Water-Quench Spark Trap Chamber

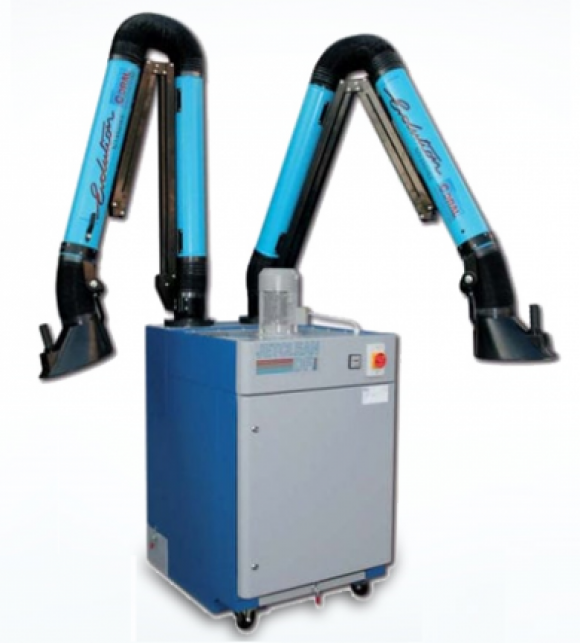

Dual Arm 3HP | 1345 CFM | Continuous | Auto-Clean
Dual Arm Jetclean Manual or Robotic Welding and Plasma Fume Extraction
Coral Jetclean DF2 3.0HP

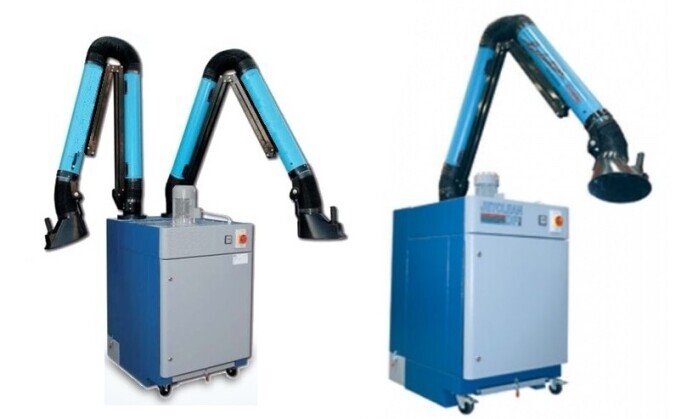

The Coral Jetclean DF 3.0 HP has dual 6"x10' or single 8"x10' articulated extraction arms for multiple source capture. Incredible air volume up to 1345 CFM, TEFC motors and a high efficiency aluminum (non-sparking) backward inclined blower wheel, the Coral Jetclean ruggedly designed and built to stand up and perform in the harshest environments.

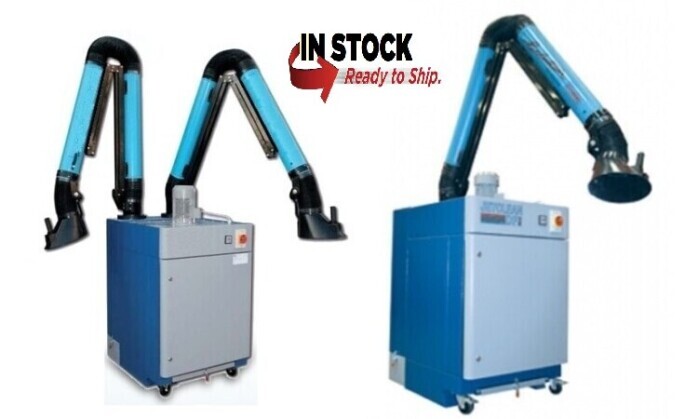

Industrial grade combination swivel and locking castors make the Coral Jetclean easily maneuverable. The Jetclean is in stock for immediate delivery.
Specifications:
| DF1 | DF2 | DF2-3.0 | |
|---|---|---|---|
| Power [Hp] | 1 | 1.5 | 3.0 |
| Power Supply Voltage [V] | 1Ph 120V | 1Ph 120V | 3Ph 230/460V |
| Frequency [Hz] | 60 | 60 | 60 |
| RPM | 3450 | 3450 | 3450 |
| Nominal Air Flow [CFM] | 856 | 1109 | 1345 |
| Front Bin Storage Capacity [Gal US] | 3.17 | 5.28 | 5.28 |
| Ext. S.P. Inches of Water | 4” H20 | 4” H20 | 4” H20 |
| Sound Level dB(A) | 73 | 74 | 74.5 |
| Sound Level with Plenum dB(A) | 65 | 70 | 70 |
| Weight (lbs.) | 275 | 352 | 385 |
| Number of Cartridges | 1 | 2 | 2 |
| Filtering Surface (Sqft) | 86.1 | 2 x 86.1 | 2 x 86.1 |
