We are based in Raleigh, NC with distribution all over the USA. Call us today for a quote. We have units in stock for immediate shipment.

Source Capture of Metal Grinding Sparks

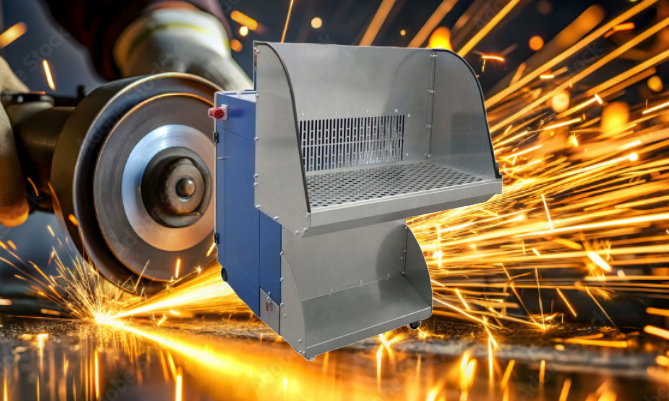

The Smoke-Cart Downdraft

The SMOKE-CART is designed in Italy by Coral. Their unique designs make them the industry leader in smart innovation.  The unit features a dual-capture design that pulls air from the back as well as the tabletop. That means the smoke has nowhere else to go but through the HEPA and is returned to the workplace as clean, breathable air.

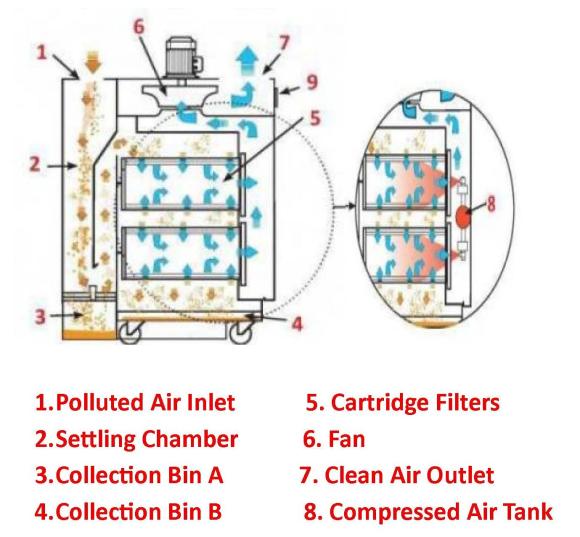

Built Around a Unique Water-Based Spark Trap

The air is pulled through the top, then through a pre-chamber equipped with a spark trap and a stainless steel collecting bin.

A programmable electronic system of compressed air cleaning

A programmable electronic compressed air cleaning system keeps the cartridges in perfect working order. The horizontal arrangement of cartridges allows for 'easy access and quick maintenance of the filter section. The filtered air is re-integrated where permitted into the work environment, leading to significant energy savings.

120V Single-Phase Plug and Play Design

120V single-phase “plug and play” design. Fully automatic filter cleaning, and a stainless steel water bath for guaranteed neutralization of live glowing embers. The Smoke-Cart requires a ¼" airline for the AUTOMATIC Filter-Cleaning System.

te
THE SMOKE-CART 110V

TECHNICAL DATA:

Model Smoke-Cart
• Power 1.5 HP
• Airflow 1109 cfm
• Number of cartridges 2
• Type of cartridge Polyester “CLASS M”
• Dimensions 29.5” x 37.6” x H=45.5”
• Version Powder coating
• Power supply 110V Singlephase 60HZ - UL
• Noise level 74 dbA

INCLUDED ACCESSORIES:

  • Thermal switch starter
  • Dual Collecting bins
  • Water indicator level
  • Spark trap
  • Compress air cleaning system
  • Pressure gauge

Plenum for HEPA and Carbon

Plenum for VOC and Hex-Chrome

PLENUM FOR HEPA | CARBON
PLENUM FOR HEPA | CARBON

A bolt-on Plenum can be added for trapping of VOC or sub-micron harmful dust. It can contain a .3 @ 99.97% eff HEPA, or a 38 lbs. activated carbon cell for VOC.

The configuration of filtration used will be specific to your application. We have aluminized conductive cartridges, as well as NANO web for sticky fume, and polyester spunbond for powders, and FR for welding.

You can customize the unit on-site for a wide range of applications by having additional filters on hand.

Internal Spark Trap and Water Bath

OP
A stainless steel water pan quenches the glowing embers
