Industrial Fibrous trim and scraps vacuums for pharma and packaging

Compact industrial vacuums for scraps and fibrous trim created during manufacturing and packaging

FOOD PHARMA OEM INDUSTRIAL VACUUMS

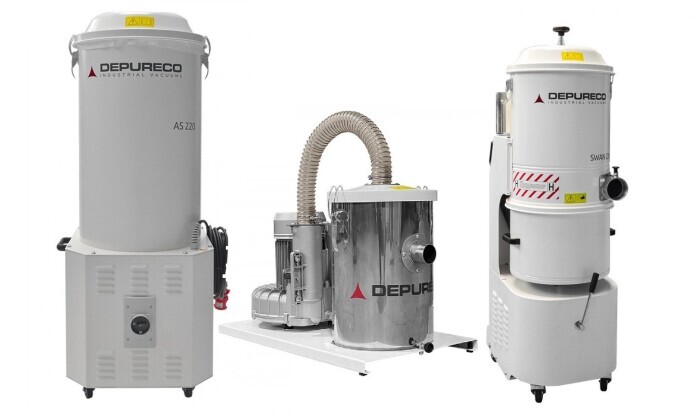

AS Scrap Collection Vacuum

Trimmed plastic pieces can be too light and unmanageable for conventional vacuums.

The AS industrial vacuum is precisely engineered to collect production trimmings. It is part of Depureco’s vacuum lineup designed for the food & pharmacy industry, featuring a side-channel turbine beneath the collection chamber.

The suction mechanism operates from the bottom, directing the vacuumed material straight into a filter bag.

This setup enables efficient recovery of lightweight materials, including paper, plastic, and packaging trimmings.

Additionally, the top cover of the vacuum cleaner includes an inspection window, providing the operator with a convenient way to monitor the material level inside the container.

Click HERE to see our vacuum Tools and Accessories Brochure

Specifications:

	AS 150	AS 220
Motors | Type	Side Channel Blower	Side Channel Blower
Voltage | Frequency	480 | 60 V|Hz	480 | 60 V|Hz
Maximum air flow	130 CFM	190 CFM
Noise level-(EN ISO 3744	64 dB(A)	64 dB(A)
Power	2.2 HP	3 HP
Vacuum continuous use	80 inH2O	85 inH2O
IP | Insulation Class	55 | F	55 | F
Inlet	2 Ø in	2 Ø in
Filter Type	Reusable Bag	Reusable Bag
Dimensions	20 x 23.2 in	23.6 x 19.7 in
Height	56.7 in	55.1 in
Weight	145 lb	154 lb
Bin capacity	32 gal	32 gal

OPERATING PRINCIPLE

The Depureco AS vacuums are designed to successfully vacuum light and fibrous materials, plastic cutaways, and all manner of materials that cause massive headaches for plant operators. Depureco's design team came up with the AS line of vacuums with these types of processes in mind. All day vacuuming power with side-channel regenerative motor/blowers, a reuse-able  polyester collection bag, and lots of power.

The unique design pulls the material through the bottom of the unit and directly into a poly bag. It stays there and doesn't get caught in anything. Call us today at (800) 635-0298 for more information.

FAQ Section - click on the + for answers

What types of applications are these vacuums used for?

• Plastic Pellet Manufacturing
• Plastic Dust/ Blending Operation
• Extrusion Lines
• Presses and Molds
• Cutting and Grinding
• Recycling and shredding

Highlights

Do you have a collector for airborne dust from our pouring operation?

We have a very large range for portable extractors that are designed for hazardous locations (HAZLOC). Call us at (800) 635-0298 and let us know the details of your unique application. We will put together a custom quote that is specific for your needs.

What are some of the filter and hardware options that are available for these vacuums?

Where do I find spare parts and accessories?

PROCESS VACUUMS - CONTINUOUS

UPC Series

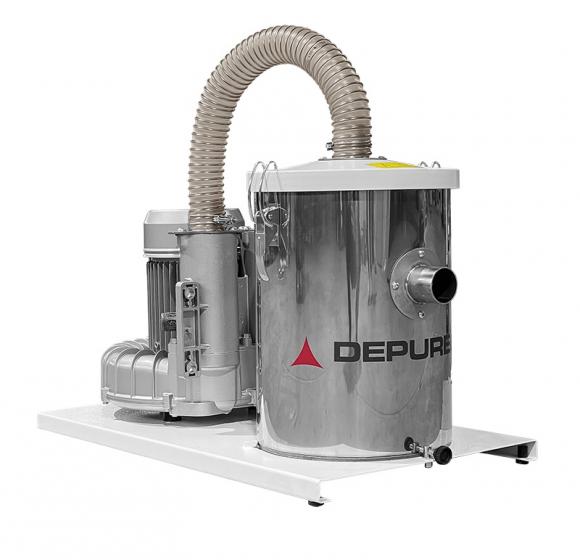

The UPF C is a compact horizontal industrial vacuum designed for machine vacuuming. This vacuum cleaner, part of the compact pharma range, is equipped with a side-channel blower that enables continuous operation without maintenance requirements.

The cartridge filter allows the suction of fine dust without compromising performances. A robust deflector is integrated into the metal inset to ensure the filter’s longevity. Thank s to the stainless steel container, the UPF C industrial vacuum facilitates the efficient collection and disposal of the vacuumed material.

Specifications:

	UPF 150 C	UPF 220 C
Motors | Type	Continuous Regen Type	Continuous Regen Type
Voltage | Frequency	480 | 60 V|Hz	480 | 60 V|Hz
Maximum vacuum	105 inH2O	120 inH2O
Maximum air flow	130 CFM	190 CFM
Noise level-(EN ISO 3744)	64 dB(A)	64 dB(A)
Power	2.28 HP	3.5 HP
Vacuum continuous use	65 inH2O	85 inH2O
IP | Insulation Class	55 | F	55 | F
Inlet	2 Ø in	2 Ø in
Filter Type	Star	Star
Class EN 60335-2-69	M	M
Media	Antistatic Polyester	Antistatic Polyester
Surface area	1,550 in²	1,550 in²
Dimensions	16.14 x 30.31 in	16.14 x 30.31 in
Height	21.65 in	21.65 in
Weight	87 lb	93 lb
Bin capacity	5 gal	5 gal

Pharmaceutical vacuums

SWAN PHARMACEUTICAL VACUUM CLEANER

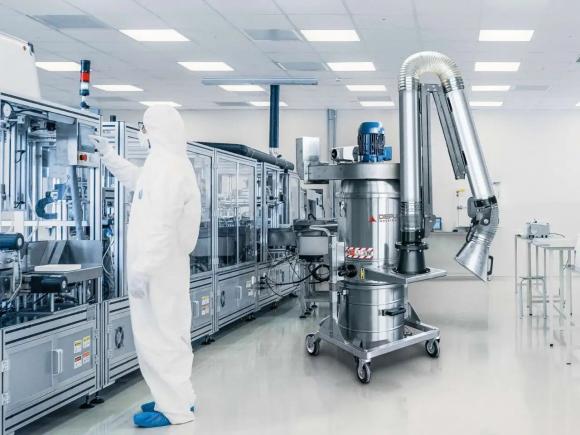

The SWAN industrial vacuum is an excellent choice for the pharmaceutical industry, as it comes with a powerful side channel turbine and offers compactness and versatility.

It can safely handle challenging dust situations. This vacuum cleaner, part of the food & pharma range, includes a standard M Class large surface filter with a manual cleaning system.

f needed, an on-demand jet pulse system with high-efficiency filter cleaning can be added to enable continuous 24/7 operation without the need for manual intervention.

Additionally, an optional H14 filter can be installed. The SWAN vacuum cleaner features a detachable container, available in either AISI 304 or AISI 316 stainless steel, along with a filter chamber.

	SWAN 150	SWAN 220
Motors | Type	Side Channel Blower	Side Channel Blower
Voltage | Frequency	480 | 60 V|Hz	480 | 60 V|Hz
Maximum air flow	130 CFM	190 CFM
Noise level-(EN ISO 3744)	64 dB(A)	69 dB(A)
Power	3 HP	3.5 HP
Vacuum continuous use	80 inH2O	85 inH2O
IP | Insulation Class	55 | F	55 | F
Inlet	3.15 Ø in	3.15 Ø in
Filter Type	Star	Star
Class EN 60335-2-69	IFA/BGIA M-PES	IFA/BGIA M-PES
Media	Antistatic Polyester	Antistatic Polyester
Filter cleaning system	Filter cleaning system	Filter cleaning system
Surface are	2,500 in²	2,500 in²
Dimensions	29.5 x 19.7 in	29.5 x 19.7 in
Weight	85 lb	90 lb
Bin capacity	13 gal	13 gal
Relief valve	Yes	Yes
