EXPLOSION-PROOF PNEUMATIC VACUUM | INTRINSICALLY SAFE | FDA APPROVED
Air Powered Industrial Vacuums that have no moving parts and no electrical parts. Non-sparking and dissipative construction. FDA Approved materials.
What is an Intrinsically Safe Vacuum Cleaner?
An Intrinsically Safe Vacuum is one that operates with no moving parts and no electrical parts. The power is supplied by compressed air that is fed into a tapered restriction also called a “venturi”. Intrinsically safe vacuums are made from non-sparking metals like stainless steel and aluminum. Mild steel is not suitable as it can create a spark when a nut or a screw is vacuumed. It will create a spark when it hits the wall of the vacuum dirt-bin.

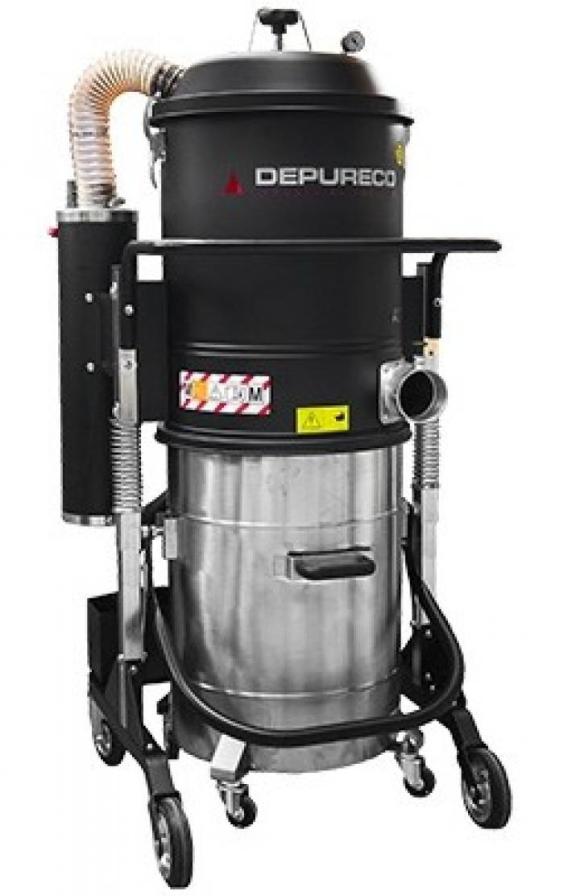

AC 100 Z22 Air-Powered
282 CFM @ 200" H2O | Class II, Div. 1, Div. 2, Groups F, G
The AC 100 Z22 is the most powerful intrinsically safe industrial vacuum cleaner in the Depureco range, designed for compressed air operation. With the utilization of a high-performance venturi tube, it achieves impressive levels of vacuum pressure. For convenient maintenance, the industrial vacuum is equipped with a manual filter cleaning system, featuring a practical lever on the vacuum head that allows for easy and effective shaking of the filter. The vacuum cleaner is accompanied by a practical release container on wheels, facilitating the collection and disposal of vacuumed materials. The container is available in two options: 17 or 26 gallons of capacity, constructed from AISI 304 steel, and equipped with four sturdy swiveling wheels that enable effortless maneuverability, even when fully loaded.
Can Operate in Diverse Conditions
The AC 100 Z22 is capable of operating in diverse conditions. AISI 304 stainless steel and a primary M Class ant-Static Filter, the AC 100 Z22 is capable of vacuuming dense materials through long runs of hose. With 200 CFM and 200" of vacuuming pressure, the AC 100 is a beast.
Great for Remote Vacuuming if You Have a Tow-Behind Compressor
Great for remote vacuuming if you have a tow-behind compressor. Our line of separation systems are forklift and truck compatible, so the AC100 and our range of separators are a great option for remote spills of XP dusts and materials.
Click HERE to see a brochure with full specifications
Perfect for:
Flour, Grain, Wood, Plastic, and Certain Chemicals
For use in areas that are:
Class II, Division 1, Division 2, Groups F, G
Specifications:
| Motor | Primary Filter | Machine |
|---|---|---|
| Motors | Type Venturi Pipe | Motors | Type Venturi Pipe | Motors | Type Venturi Pipe |
| Maximum Vacuum 200 inH2O | Maximum Vacuum 200 inH2O | Height 47.24 in |
| Maximum Air Flow 282 CFM | Media Antistatic Polyester | Weight 145 lb |
| Noise Level-(EN ISO 3744) 70 dB(A) | Filter Cleaning System Manual Shaker | Bin Capacity 17 gal |
| Pressure Required 2,500-3,000 inH20 | Pressure Required 2,500-3,000 inH20 | |
| Inlet 3.15 Ø in |
MINIAIR Z2-22
Intrinsically Safe Air Vacuum
The MINI AIR Z2-Z22 is an intrinsically safe compressed air vacuum cleaner that offers exceptional power and versatility for a wide range of industrial applications. It features two parallel working ejectors that deliver maximum performance. Each ejector is adjustable, allowing for customized airflow or vacuum strength depending on the specific task at hand. Inside the vacuum cleaner, you’ll find a large surface filter made of antistatic polyester, certified as M class with a filtration efficiency of 1 micron. This filter ensures the safe collection of electrostatically charged dust. Additionally, an optional H14 filter is available for capturing the finest particles. The vacuum cleaner comes equipped with an effective manual filter cleaning system. By simply using the lever located outside the filtering chamber, the operator can shake the filter, causing the dust to be deposited directly into the collection container. For convenient disposal, a spacious 11 gal release container with wheels is provided, making it easy to empty the vacuumed material.
Perfect for:
Flour, Grain, Wood, Plastic, and Certain Chemicals
For use in areas that are:
Class II, Division 1, Division 2, Groups F, G
Specifications:
| Motor | Primary Filter | Machine |
|---|---|---|
| Motors | Type Venturi Pipe | Filter Type Star | Dimensions 21.65 x 24.41 in |
| Maximum Vacuum 200 inH2O | Class EN 60335-2-69 | Height 45 in |
| Maximum Air Flow 147 CFM | Media Antistatic Polyester | Weight 88 lb |
| Noise Level-(EN ISO 3744) 73 dB(A) | Filter Cleaning System Manual Shaker | Bin capacity 11 gal |
| Air required 660 gal/min | Surface Area 2500 in² | |
| Pressure Required 2500 - 3000 inH20 | ||
| Inlet 2.75 Ø in |
Industrial pneumatic vacuum cleaner for liquids
Venturi Pipe with Gravity Discharge
WD AIR is an industrial vacuum cleaner powered by compressed air from the Depureco line to vacuum liquids, even if dirty with debris and light sludge. Equipped with two ejectors which, working in parallel, guarantee maximum performance. Each ejector is adjustable to provide more airflow or more depression depending on the application. Depureco's WD AIR industrial vacuum is equipped with two bag filters, one in polyester or one in polypropylene to be used, depending on the application, to separate the solid material vacuumed from the liquid. The capacity of the container of this unit is 130 Lt, allowing you to easily vacuum large quantities of material and be able to discharge it just as simple thanks to the drain located at the bottom of the container. A transparent tube is mounted on the front in order to check the level of the liquid inside the industrial vacuum. A float can be arranged in the container to vacuum in total safety.
