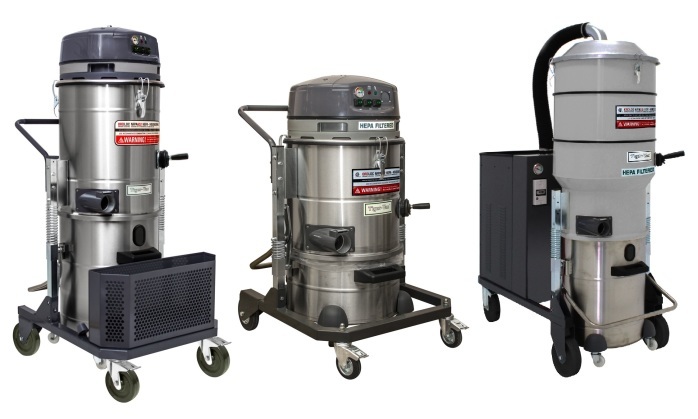

NFPA 652 Compliant Vacuums for ST1 XP Dust in ORDLOC
110v Electric and Pneumatic Vacuums for XP dusts

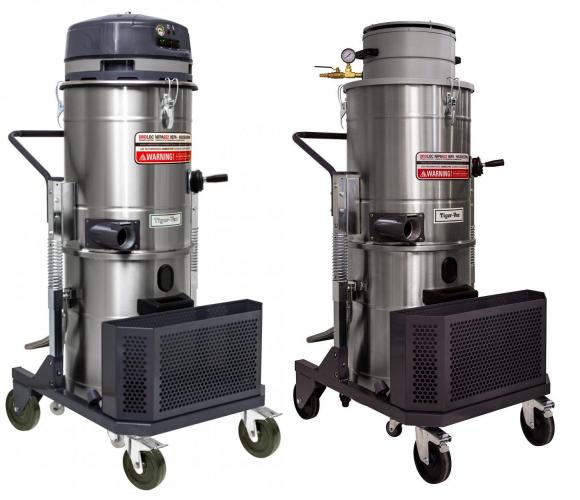

Tiger-Vac® TV-200 (DT) 120v electric - AVSD-1/2 (60L/100L) air-powered
Powerful vacuuming solutions for when you don't have 3 phase power or a 30HP compressor. Operating with a ½” airline, the new Tiger-Vac AVSD-1/2 (60L/100L) dual venturi systemhas twice the suction of a traditional pneumatic vacuum.Until now you would need a 30 HP compressor and a 1" airline to get this kind of vacuuming power. This new unique dual venturi design only requires a ½" airline and a 20 HP compressor.
The Tiger-Vac TV-200 / TV-200S (DT) MFS HEPA ORDLOC-652 delivers 270 cfm from 120V. The main bag filter has a manual shaker handle on the outside of the unit for easy cleaning. The dust falls off the filter and into the hopper. The final stage is a HEPA located under the motor deck.
The NFPA 652 compliant design includes a conductive star shaped main filter (MFS System) and a static conductive hose and tool kit that includes a 2” x 15’ conductive hose.
Perfect for:
Non-metallic XP dust in ORDLOC areas. Food industry, machine shops, Plastics industry, Ceramics industry, printing, textiles, heavy clean-up, etc.
Click here for specifications for AVSD-1/2 (60L/100L) air-powered
Model Name
AVSD-1 (60L) DT (MFS) HEPA SINGLE VENTURI
AVSD-2 (60L) DT (MFS) HEPA DUAL VENTURI
AVSD-1 (100L) DT (MFS) HEPA SINGLE VENTURI
AVSD-2 (100L) DT (MFS) HEPA DUAL VENTURI
Type (Powerhead)
Pneumatic
Pneumatic
Pneumatic
Pneumatic
Venturi
Single
Dual
Single
Dual
Minimum Compressor
10-15 HP
15-20 HP
10-15 HP
15-20 HP
Air Line Size (Diam.)
3/8 "
1/2 "
3/8 "
1/2 "
Input Air Volume
35-45 CFM
45-55 CFM
35-45 CFM
45-55 CFM
Input Air Pressure
80 PSI
90 PSI
80 PSI
90 PSI
Air Flow
85 CFM
170 CFM
85 CFM
170 CFM
Vacuum Pressure
135 " H20
135 " H20
135 " H20
135 " H20
Sound Level
73 dB(A)
73 dB(A)
74 dB(A)
74 dB(A)
Suction Inlet
70 mm
70 mm
70 mm
70 mm
Cart Type
Detachable Tank (DT)
Detachable Tank (DT)
Detachable Tank (DT)
Detachable Tank (DT)
Filter Cleaning
Manual Filter Shaker (MFS)
Manual Filter Shaker (MFS)
Manual Filter Shaker (MFS)
Manual Filter Shaker (MFS)
Filter Type
Star Shaped + HEPA
Star Shaped + HEPA
Star Shaped + HEPA
Star Shaped + HEPA
Filter Surface Area
21 ft² + 10.8 ft2
21 ft² + 10.8 ft2
21 ft² + 10.8 ft2
21 ft² + 10.8 ft2
Recovery Capacity (Dry)
16 Gal
16 Gal
26 Gal
26 Gal
Length
32 "
32 "
32 "
32 "
Width
26 "
26 "
26 "
26 "
Height
54.5 "
54.5 "
61.5 "
61.5 "
Weight (Vacuum Only)
125 lb.
125 lb.
136 lb.
136 lb.
Click here for specifications for 120V TV-200 (DT) MFS HEPA ORDLOC-652
P/N
112060A-652
112062A-652
Model Name
TV-200 (DT) MFS HEPA ORDLOC-652
TV-200S (DT) MFS HEPA ORDLOC-652
Type (Powerhead)
Electric
Electric
Voltage
120 V
120 V
Hertz
60 Hz
60 Hz
Phase
Single
Single
Wattage
2400 W
2400 W
Power
3.2 HP
3.2 HP
Amperage
15.8 A
15.8 A
Air Flow
270 CFM
270 CFM
Vacuum Pressure
71.5 " H20
71.5 " H20
Sound Level
70 dB(A)
70 dB(A)
Plug Type
20 Amps
20 Amps
Suction Inlet
70 mm
70 mm
Cart Type
Detachable Tank (DT)
Detachable Tank (DT)
Filter Cleaning
Manual Filter Shaker (MFS)
Manual Filter Shaker (MFS)
Filter Type
Star Shaped + HEPA
Star Shaped + HEPA
Filter Surface Area
21 ft² + 10.8 ft2
21 ft² + 10.8 ft2
Recovery Capacity (Dry)
16 Gal (60 L)
26 Gal (100 L)
Length
32 "
32 "
Width
26 "
26 "
Height
54.5”
61.5”
Weight (Vacuum Only)
143 lb.
154 lb.
Cord Length
30 ft.
30 ft.
Do you have a vacuum that is designed for Gun Range cleanup?
2.3 gallons capacity vacuum for XP dust housekeeping

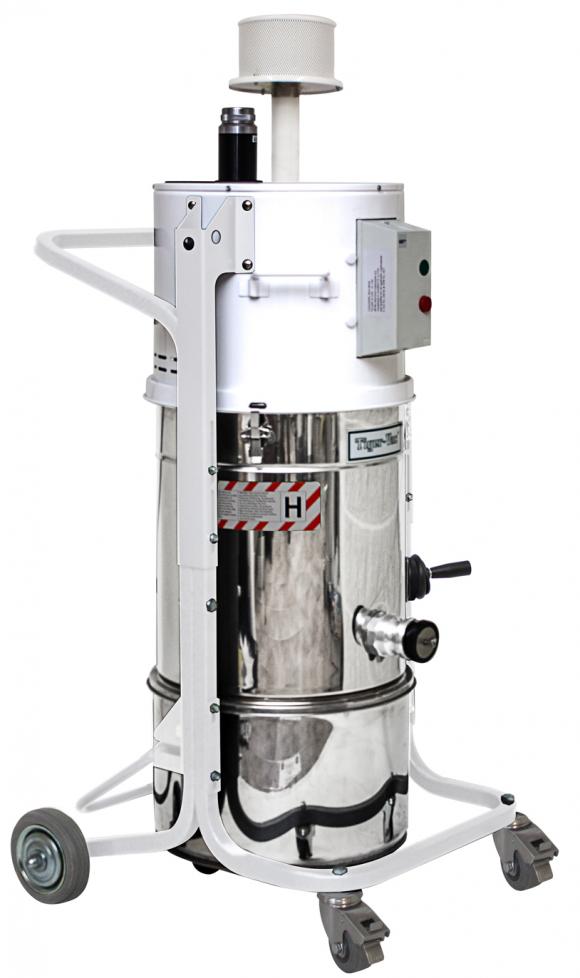

Tiger-Vac® Stainless Steel SAE 304 for Pharma and Food Grade Compliance.

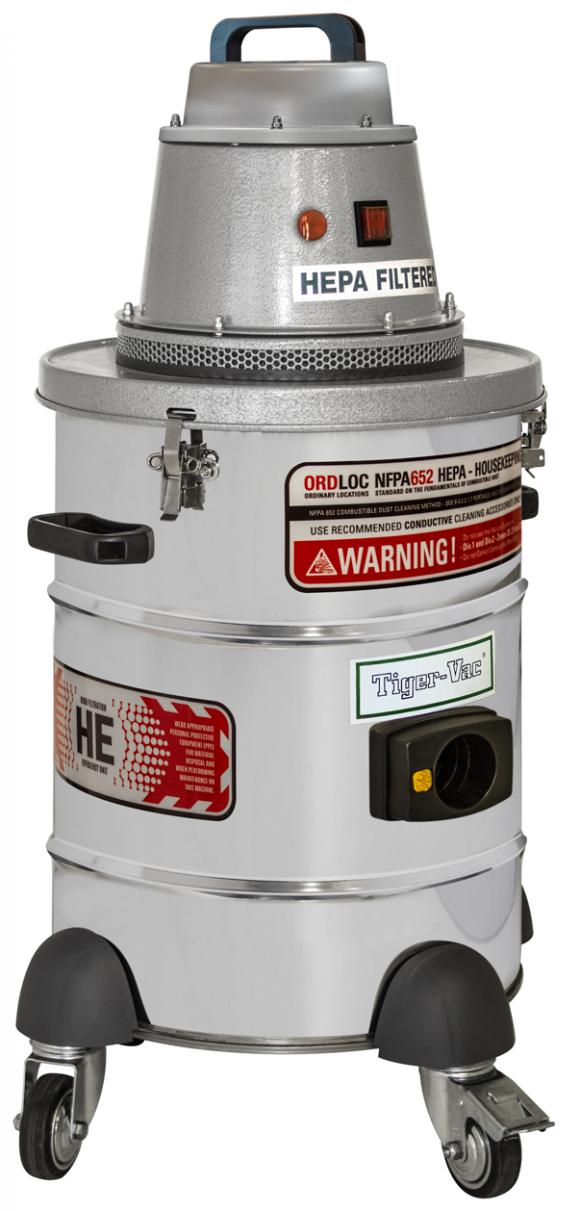

The Tiger-Vac® 2D-10 (4W) HEPA ORDLOC-652 is a popular vacuum in the pharmaceutical industry, labs, and production areas where critical filtration, food grade, and ESD materials are needed. All of these units share similar construction and components.
The 2D-10 (4W) HEPA ORDLOC-652 is the smallest HEPA vacuum in the range of NFPA-652 compliant vacuums. It has a dry capacity of about 2.3 gallons.
Each vacuum ships with a fully static-dissipating hose and tool kit, dual HEPA Filters, Main Filter, collections bags made of conductive materials, and conductive poly draw-string liners.
Its manual filter shaker means you won’t have to take the filter out to clean it. Just a few shakes of the handle and you can continue vacuuming.
There is also have a variety of filter choices, from M Class to static dissipating, Nomex and HEPA.
The 2D-10 (4W) HEPA OEDLOC-652 is a great choice when you have compliance obligations but small vacuuming tasks. Call us any time if you have questions: (800) 635-0298
Perfect for:
Non-metallic XP dust in ORDLOC areas. Housekeeping and general cleaning.
Click here for specifications
2D-10 (4W) HEPA ORDLOC-652
113185A
113185A-BLSD
Model Name
2D-10 (4W) HEPA ORDLOC-652
2D-10 (4W) HEPA ORDLOC-652 W/BRUSHLESS MOTOR
Type (Powerhead)
Electric
Electric
Voltage
120 V
120 V
Hertz
60 Hz
60 Hz
Phase
Single
Single
Wattage
1207 W
1100 W
Power
1.6 HP
1.5 HP
Amperage
10.5 A
13 A
Air Flow
110 CFM
127 CFM
Vacuum Pressure
107 " H20
89 " H20
Sound Level
75 dB(A)
75 dB(A)
Plug Type
120V
120V
Suction Inlet
60 mm
60 mm
Cart Type
4 Wheel Dolly (4W)
4 Wheel Dolly (4W)
Dry Recovery - Disposable Filter Bag
5 gal.
5 gal.
Length
17 "
17 "
Width
17 "
17 "
Height
34 "
35 "
Cord Length
35 ft.
35 ft.
6.6 gallons capacity XP dust cleanup around work stations

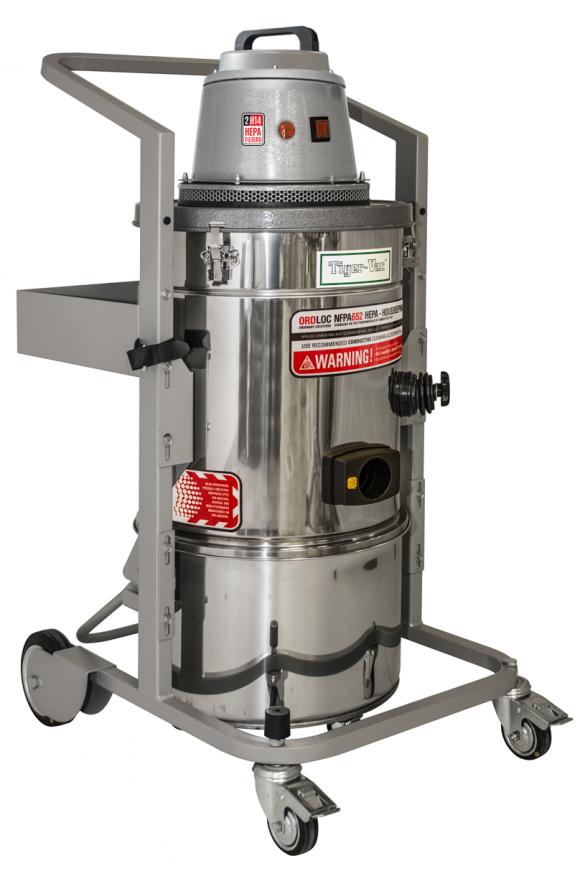

Tiger-Vac® 2D-25L (DT) MFS HEPA ORDLOC-652
Tiger-Vac® 2D-25L (DT) MFS HEPA ORDLOC-652 is a slightly larger version of the 2D-10L. For dry recovery of ST1 XP dusts in ORDLOC areas. Comes with a HD 2-stage bypass motor. Optional brushless-motor is available. HEPA filtered, comes with a manual filter shaker.
Detachable recovery tank (DT). Comes with a static-dissipating hose and tool kit. 110v plug and play design. These usually ship quickly as it is a very popular vacuum.
Perfect for:
Non-metallic XP dust in ORDLOC areas. Housekeeping and general cleaning.
Click here for specifications
2D-25L (DT) MFS HEPA ORDLOC-652
111405A
Model Name
2D-25L (DT) MFS HEPA ORDLOC-652
Type (Powerhead)
Electric
Voltage
120 V
Hertz
60 Hz
Phase
Single
Wattage
1200 W
Power
1.6 HP
Amperage
10.5 A
Air Flow
110 CFM
Vacuum Pressure
107 " H20
Sound Level
75 dB(A)
Plug Type
120V
Suction Inlet
60 mm
Cart Type
Detachable Tank (DT)
Filter Cleaning
Manual Filter Shaker (MFS)
Dry Recovery - Tank
6.6 Gal
Cord Length
35 ft.
14.5 gallons capacity for XP dust in ORDLOC

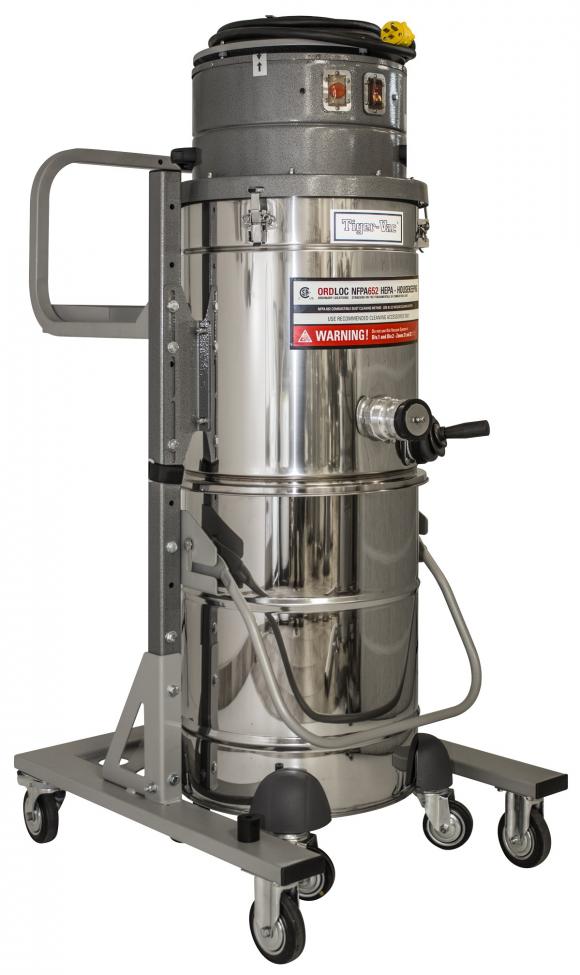

Tiger-Vac® 4D-55L
The Tiger-Vac®4D-55L (DT) MFS HEPA ORDLOC-652 is fully compliant with NFPA 652 standards for ordinary location vacuuming of ST1 explosive powders. If your area is not rated as a hazardous location, then the 4D-55L (DT) MFS HEPA ORDLOC-652 could be a very good vacuum for clean up around work areas and general housekeeping.
The 4D-55L is rated for 200 cfm and has 14.5 gallons of dry recovery capability. Its manual filter shaker means you won’t have to take the filter out to clean it. Just a few shakes of the handle and you can continue vacuuming.
We also have a variety of filter choices, from M Class to static dissipating, Nomex and HEPA.
Perfect for:
Non-metallic XP dust in ORDLOC areas. Housekeeping and general cleaning.

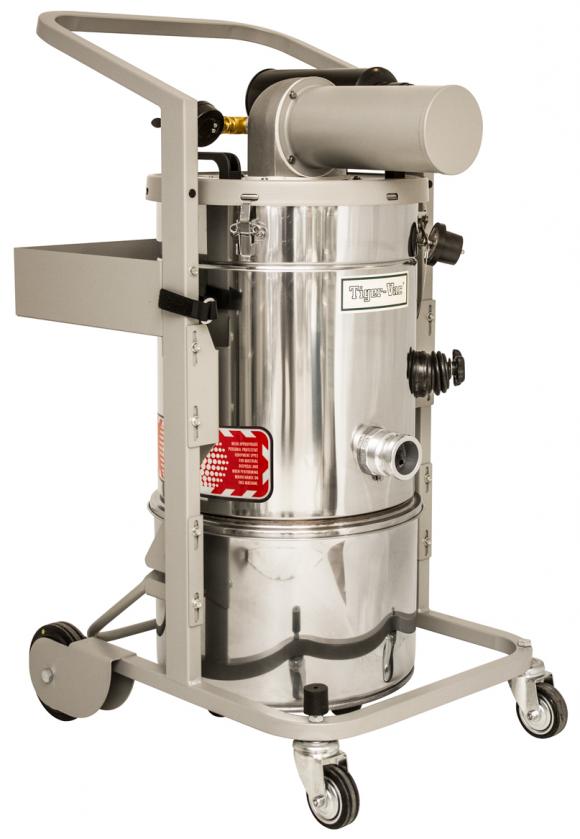

Tiger-Vac® AVSD-25L DT (MFS) RE HEPA (SINGLE VENTURI)
ESD Safe Vacuum Cleaner for Hazardous Locations designed to prevent ignition hazards. We use metal parts or Static Dissipative Powder Coating to prevent Electrostatic Discharge (ESD). Designed for use in Class II, Division I, Division 2, Groups F,G Hazardous Locations as defined in the National Electrical Code (NFPA 70).
These ESD Safe Vacuums are built to the highest standards and are completely static dissipating and grounded from the hose all the way back to the grounded connection hose. Used in all kinds of industries and applications for explosive powders. For explosive metal powders see our wet-immersion vacuums.
Perfect for:
XP dust in HAZLOC areas. Housekeeping and general cleaning.

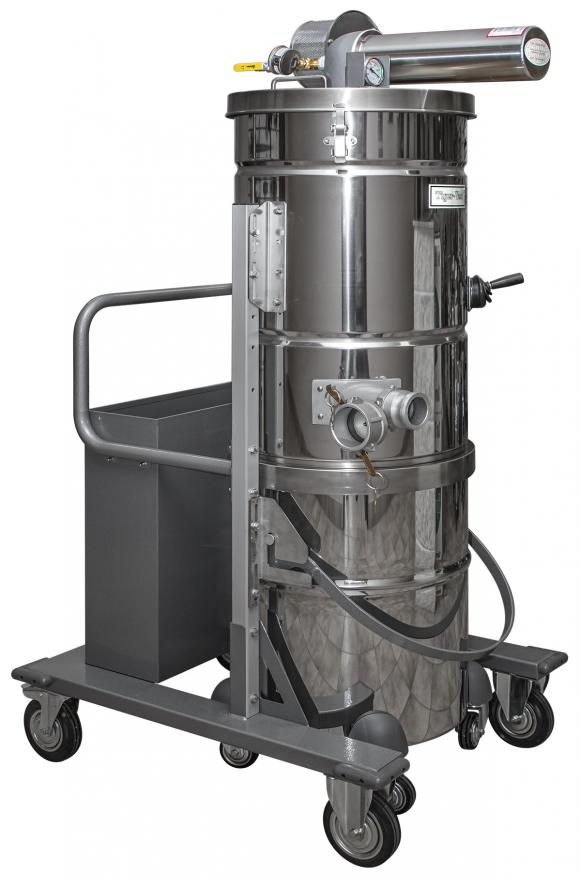

The Tiger-Vac® AVSD-100L DT (MFS) RE HEPA (SINGLE/TWIN VENTURI) is a powerful vacuuming solution in HAZLOC areas where 3 phase electricity is not available. Pneumatic vacuums generally have more vacuuming power than 110V single phase vacuums. when vacuuming high bulk-density powders, wet sand, etc., a powerful vacuum like the AVSD-100L can be very useful.
Wet & dry recovery, stainless SAE 430 body and tank. Fully static-dissipating design. We have a full range of static-conductive vacuuming hoses and tools, including overhead vacuuming kits, conductive specialty nozzles, vacuuming brushes with replaceable conductive bristles, and a wide variety of conductive wands and extension wands.
The Tiger-Vac® TV-25L (DT) MFS HEPA WT Industrial continuous-duty vacuum cleaner is designed specifically for the Food and Pharmaceutical industries. Multiple filter stages, including HEPA which is efficient to .3 micron @99.995%, aerosol tested. TEFC continuous-duty induction motor for all-day vacuuming requirements.
The TV-25L (DT) MFS HEPA WT has a manual filter-shaker and comes with a complete fool kit with a clear suction hose. We also carry a variety of specialty vacuuming tools and hoses, including lightweight overhead vacuuming kits, and a wide range of static conductive vacuuming nozzles.Click HERE for more information on our hoses and tools.
Non-metallic XP dust in ORDLOC areas. Housekeeping and general cleaning.
Industrial vacuum for robotic cell - 3 phase continuous-duty vacuums
Tiger-Vac® TV-730 HEPA

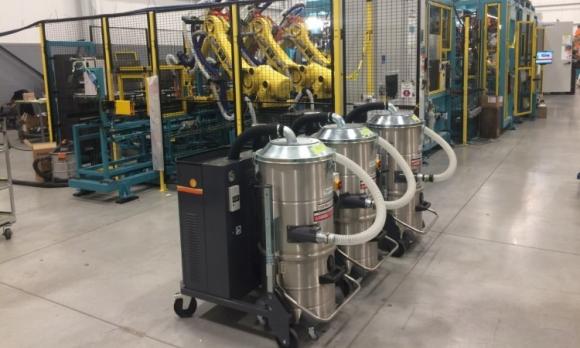

A Systems Integrator approached Controlled Air Design to provide a solution for a continuous spin welding application within a robotic cell. We recommended theTiger-Vac®TV-730 (DT) MFS HEPA ORDLOC-652 continuous-duty vacuum. Equipped with continuous-duty vacuums have “regen” or regenerative induction motors. Read the full case-study by clicking HERE
Non-metallic XP dust in ORDLOC areas. Housekeeping and general cleaning

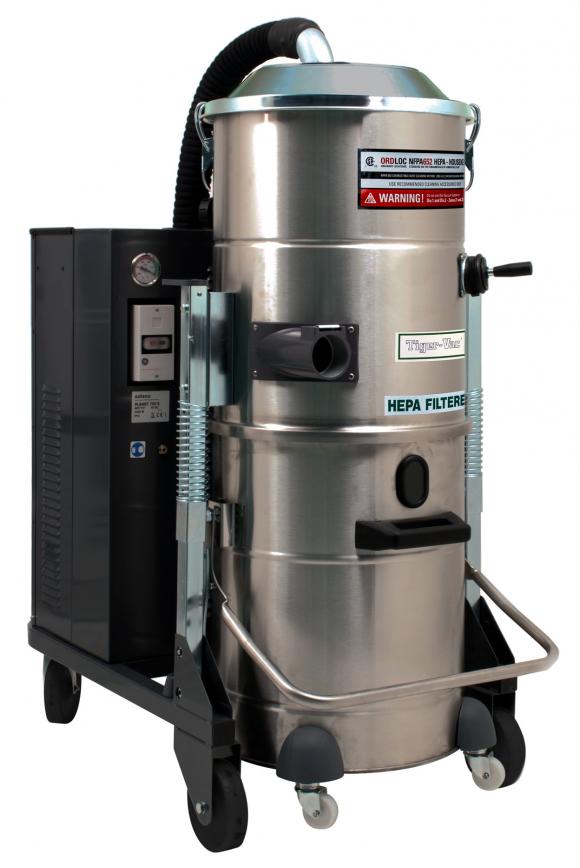

TV-740S (DT) MFS HEPA ORDLOC-652
TV-740S (DT) MFS HEPA ORDLOC-652
The Tiger-Vac® TV-740S (DT) MFS HEPA ORDLOC-652 is a 6HP Continuous-duty portable industrial vacuum for recovery of explosive (non-metallic) dust within NFPA ORDLOC areas. For use in machine shops, Plastics industry, Ceramics industry, printing, textiles, heavy clean-up, etc. The TV-740 has a TEFC induction motor that is rated for all day use. Ideal for production, or for a fixed capture source for a variety of applications.
Featuring a star shaped bag filter, plus a cartridge, the two filter-stages combine for 21 ft² + 10.8 ft2 total filter area. A manual filter-shaker allows the operator to clean the main filter without having to do any disassembly.
Available in 208/230, 460, or 575 volts, 3-phase operation. Comes with static-dissipating hose and tools. We also have a wide variety of dissipating and conductive hoses, nozzles and wands available.
Non-metallic XP dust in ORDLOC areas Housekeeping and general cleaning.

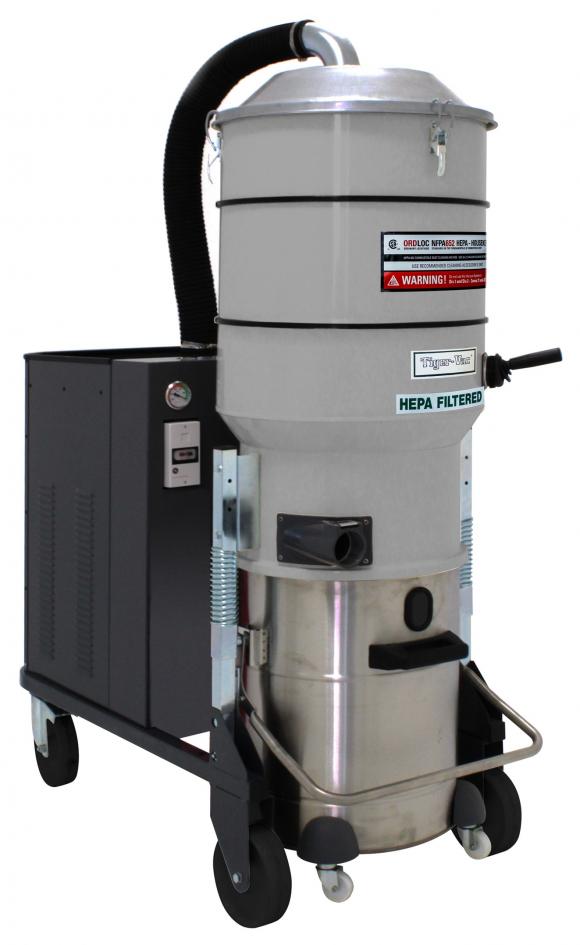

TV-775 HEPA
Tiger-Vac® TV-775 HEPA
The Tiger-Vac® TV-775 (DT) MFS HEPA ORDLOC-652 ranges between 8.5HP and 11.5HP depending on which model. See more on the 3 different models in the specifications link below. Continuous-duty portable industrial vacuum for recovery of explosive (non-metallic) dust within NFPA ORDLOC areas. For use in machine shops, Plastics industry, Ceramics industry, printing, textiles, heavy clean-up, etc. The TV-775 (DT) MFS HEPA ORDLOC-652 has a TEFC induction motor that is rated for all day use. Ideal for production, or for a fixed capture source for a variety of applications.
Featuring up to 494 CFM @ 108 " H20 and 26 gallons of dry recovery, and around 74 dB(A) @ 3 meters noise level, the TV-775 (DT) MFS HEPA ORDLOC-652 is a workhorse.
Available in 460, or 575 volts, 3-phase operation. Comes with static-dissipating hose and tools. We also have a wide variety of dissipating and conductive hoses, nozzles and wands available.
XP dust in ORDLOC areas. Housekeeping and general cleaning
Personal Cleaning Station NFPA 652 Vacuum

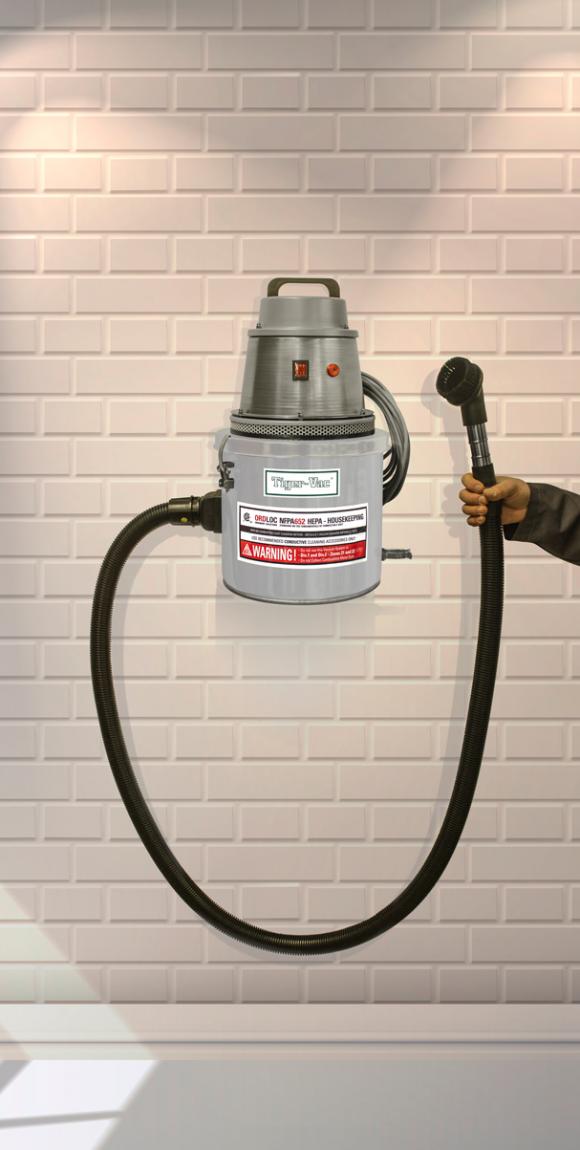

Tiger-Vac® 2D-1 for Personal Cleaning Stations
The Tiger-Vac® 2D-1 for Personal Cleaning Stations is designed for vacuuming down clothing and shoes that contain dust. This is to avoid tracking that dust through other parts of the facility.
Manufactured to NFPA 652 standard for XP dusts in ORDLOC areas.
110v wall mountable. Comes with static-dissipating hose and brush. Pressure gauge is visible on the unit to detect blockages in the filter. Featuring a manual filter shaker, and a HEPA filter that is aerosol tested, the Tiger-Vac® 2D-1 also doubles as a de-facto ambient air-cleaner.
Perfect for:
XP dust in ORDLOC areas. Used for vacuuming powders from clothing when leaving work area.
FAQ Section
What kind of motor do I need for all day use with no stopping?
For all day, or multiple shift continuous vacuuming, you need a continuous-duty vacuum with a regenerative TEFC induction motor. TEFC stands for Totally Enclosed Fan Cooled.
What is a "regen" blower?
Lifespan: 20 + years with proper care. Our continuous-duty vacuums have “regen” or regenerative induction motors. These are the old fashioned production motors that have a primary winding that induces a current in a secondary winding. We recommend this type of motor if you are running 2 shifts non-stop. Newer carbon brush, and brushless type, have a purpose in that they are inexpensive and they can deliver a lot of power, but for a finite period. Regenerative type are generally superior and they last forever.
What is a carbon brush motor?
Lifespan: 1000 to 2000 hrs. A carbon brush motor will burn fast, hot and out. It is an inexpensive way to get a lot of power for a finite period of time. They are good for intermittent duty applications but they will go into thermal shutdown when they heat up as there isn’t a cooling fan. The brushes in the motors we use can be replaced quite easily and inexpensively. After changing the brushes the motor is not as powerful though.
What is an explosion-proof motor?
An electric motor is considered explosion-proof when it is capable of containing an internal explosion without rupturing and putting the entire industrial facility at risk. Tiger-Vac® explosion-proof vacuums are legally certified explosion proof/dust ignition proof by NRTL.
What is "brushless motor"
Brushless motors have been around since the 1960s, being used in industrial and manufacturing applications for [motors that drive] conveyor belts. These are more efficient than carbon brush type motors and have up to 11,000 to 15,000 hrs run time. They are not suitable for all day running, but they can run for a lot longer time span than carbon brush motors can.
Who do I call for parts or service?
Controlled Air Design are in Raleigh, NC. We can be reached locally at (919) 607-6765 or (800) 635-0298 and sales@controlledairdesign.com
Are these vacuums explosion-proof?
We carry both explosion-proof and non XP depending on what the application calls for.
What is NRTL?
OSHA created the Nationally Recognized Testing Lab (NRTL) program to ensure that certain types of equipment be tested and certified for their safe use in the workplace. A Nationally Recognized Testing Laboratory (NRTL) is a private-sector organization that OSHA has recognized as meeting the legal requirements in 29 CFR 1910.7 to perform testing and certification of products using consensus based test standards. An organization must have the necessary capability both as a product safety testing laboratory and as a product certification body to receive OSHA recognition as an NRTL. To find out more about the OSHA NRTL program, please follow this link to the OSHA website: https://www.osha.gov/dts/otpca/nrtl/nrtllist.html
What are "conductive vacuum tools and hose"? and what is the difference between a grounded hose and a hose that conducts static?
Our Static Conductive Vac Tools and Hoses are impregnated with a high concentration of conductive resins, such as carbon black and various conductive urethane resins. Our Statmax Conductive vac hoses specification sheets contain resistance readings that show the concentration of conductive resins used: https://www.controlledairdesign.com/images/uploads/files/StatMax_YL_1.pdf
Can you better explain what is NFPA 652 Compliance for Vacuums and Dust Collectors?
NFPA 652 requires all facilities handling combustible dust, even in NON-Classified environments, to use vacuum systems that meet very specific design requirements as laid out in NFPA 652 Section 8.4.2.2.
The standard identifies 7 specific requirements:
The materials of construction must be conductive, except in a few specific circumstances.
Hoses must be conductive or static dissipative.
All conductive components, including wands and attachments, must be bonded and grounded.
Dust-laden air must not pass through the fan or blower.
Electrical motors must not be in the dust-laden air stream unless listed for Class II, Division I, locations.
Paper filter elements aren’t allowed for picking up liquids or wet materials.
Vacuum systems used for metal dust must meet the requirements of NFPA 484, which is the standard for combustible metals.
